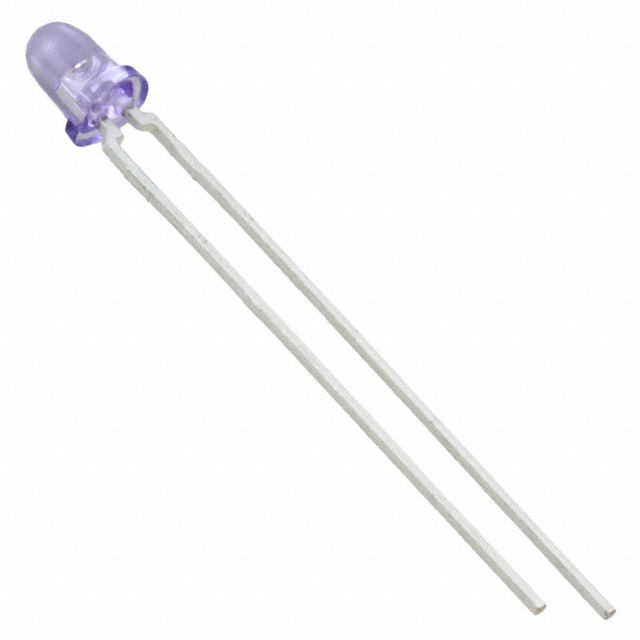

SFH 487-3
EMITTER IR 880NM 100MA RADIALManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. SFH-487-3 is an infrared (IR) emitter with a peak wavelength of 880nm. This radial package component is designed for through-hole mounting and offers a typical forward voltage of 1.5V at a maximum DC forward current of 100mA. At this current, the emitter provides a radiant intensity of 31mW/sr. The SFH-487-3 features a 40° viewing angle and operates within an ambient temperature range of -40°C to 100°C. Its top-view orientation and robust radial package make it suitable for applications in automotive, industrial automation, and security systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 40° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 31mW/sr @ 100mA |
