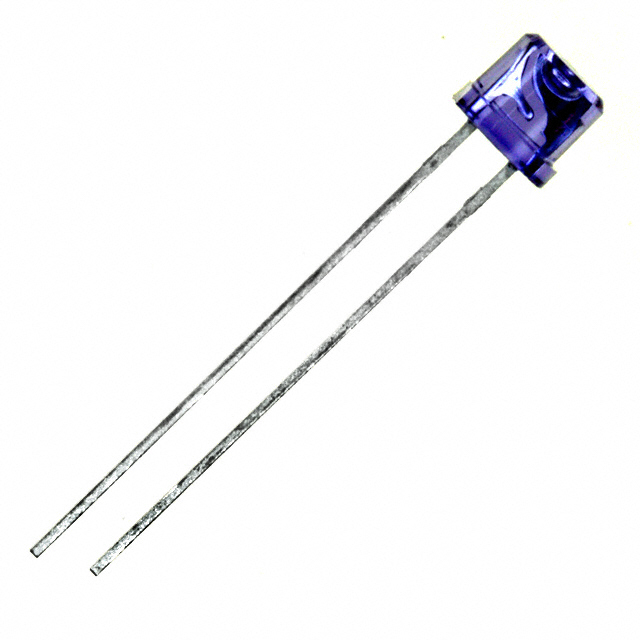

SFH 485 P
EMITTER IR 880NM 100MA T 1 3/4Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. SFH-485-P is an 880nm infrared emitter designed for efficient light transmission. This T 1 3/4 package component features a typical forward voltage of 1.5V and a maximum DC forward current of 100mA. Delivering a radiant intensity of 3.15mW/sr at 100mA with an 80° viewing angle, the SFH-485-P is suitable for applications requiring precise IR illumination. Its through-hole mounting facilitates integration into various circuit designs. Operating within a temperature range of -40°C to 100°C (TA), this emitter finds utility in industries such as industrial automation, security systems, and optical sensing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | T 1 3/4 |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 80° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 3.15mW/sr @ 100mA |
