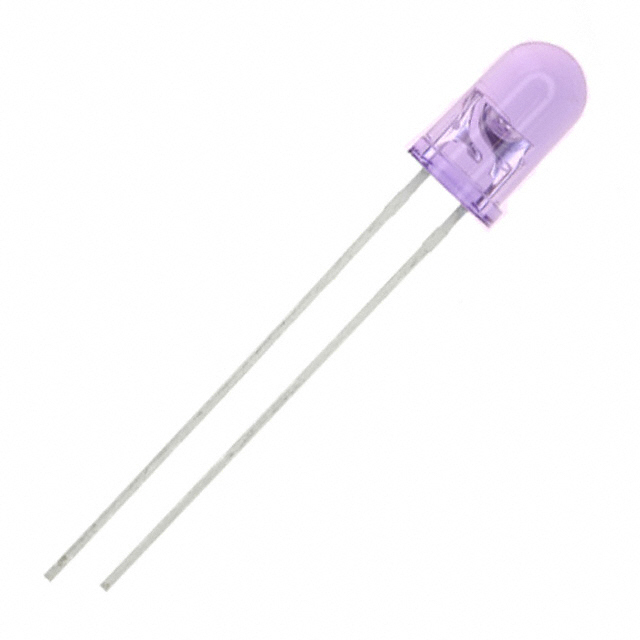

SFH 485-2
EMITTER IR 880NM 100MA T 1 3/4Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. SFH-485-2 is an infrared (IR) emitter featuring an 880nm wavelength. This through-hole component, housed in a T 1 3/4 package, operates with a typical forward voltage of 1.5V and a maximum DC forward current of 100mA. At 100mA, it delivers a radiant intensity of 25mW/sr with a 40° viewing angle. The emitter is designed for top-view orientation and can operate within an ambient temperature range of -40°C to 100°C. This component finds application in various industries, including automotive, industrial automation, and security systems, where reliable IR emission is critical. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | T 1 3/4 |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 40° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 25mW/sr @ 100mA |
Request a Quote
Clients Also Buy
SFH 7013 E9602
CHIP LED
LZ4-40UB00-00U7
EMITTER UV 1A 400NM-405NM

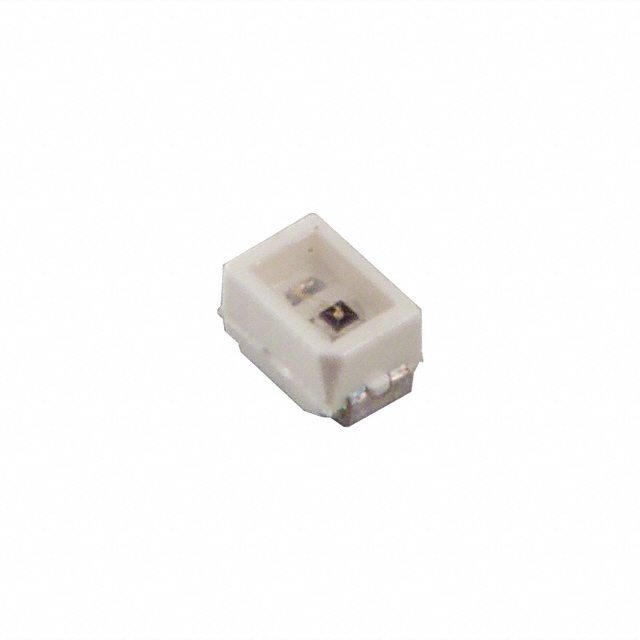

SFH 4203
