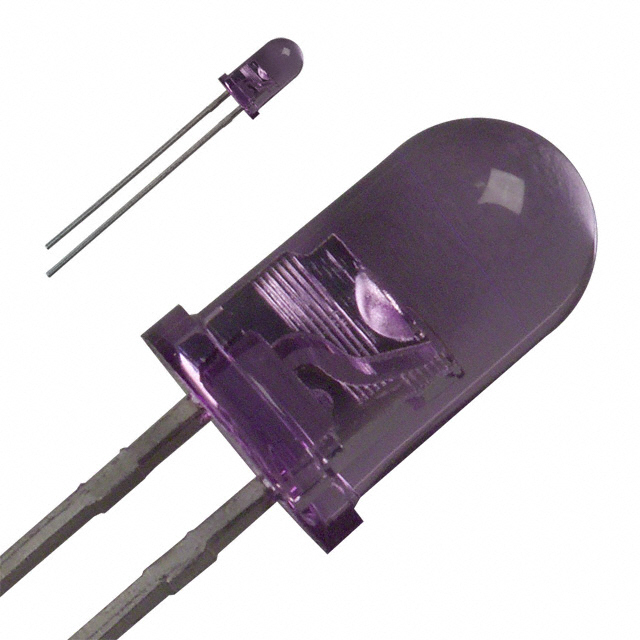

SFH 484-2
EMITTER IR 880NM 100MA T 1 3/4Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. SFH-484-2 is an infrared (IR) emitter with a peak wavelength of 880nm. This T 1 3/4 package component is designed for through-hole mounting and offers a typical forward voltage of 1.5V at 100mA DC forward current. Its radiant intensity is specified at a minimum of 80mW/sr at 100mA, with a narrow viewing angle of 16°. The SFH-484-2 operates across a temperature range of -40°C to 100°C (TA). This component finds application in various industries, including industrial automation, security systems, and automotive sensing. It is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | T 1 3/4 |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 16° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 80mW/sr @ 100mA |
