SFH 482
EMITTER IR 880NM 200MA TO-18Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

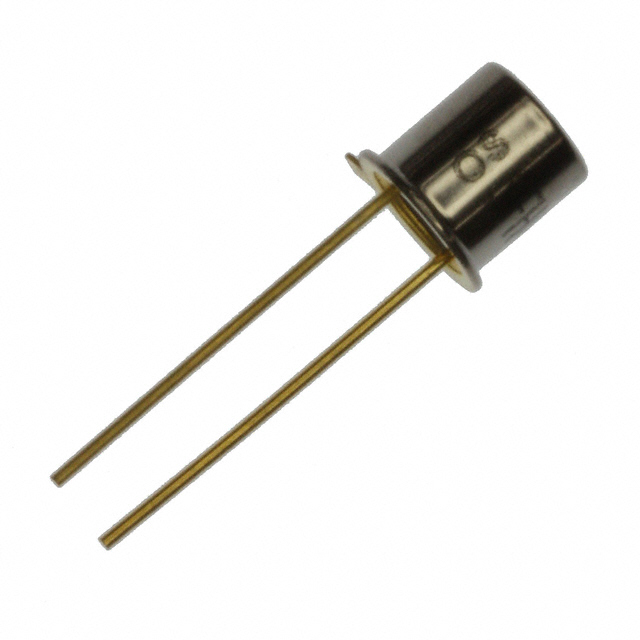

The ams-OSRAM USA INC. SFH-482 is an infrared (IR) emitter with a peak wavelength of 880nm. This TO-18-2 Metal Can packaged component is designed for through-hole mounting and features a typical forward voltage of 1.5V at a maximum DC forward current of 200mA. Its radiant intensity is specified at a minimum of 3.15mW/sr at 100mA, with a viewing angle of 60°. The SFH-482 operates within an industrial temperature range of -40°C to 125°C (TA). This component is suitable for applications in sensing, security systems, and industrial automation, where reliable IR illumination is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-18-2 Metal Can |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 60° |
| Current - DC Forward (If) (Max) | 200mA |
| Radiant Intensity (Ie) Min @ If | 3.15mW/sr @ 100mA |
