SFH 4813
EMITTER IR 950NM 300MA TO-46Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

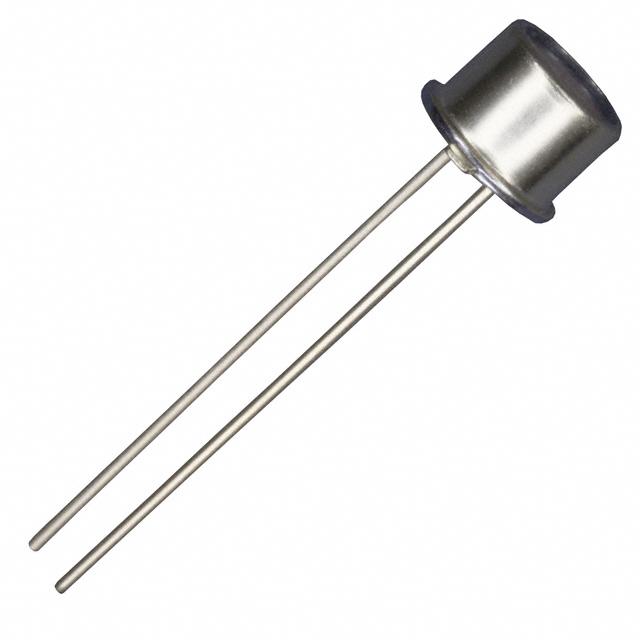

ams-OSRAM USA INC. SFH-4813 is an infrared (IR) emitter operating at a wavelength of 950nm. This component features a typical forward voltage (Vf) of 1.3V and a maximum DC forward current (If) of 300mA. The radiant intensity is specified as a minimum of 2.5mW/sr at 100mA, with a viewing angle of 70 degrees. Housed in a TO-46-2 metal can package with a lens top, this emitter is designed for through-hole mounting. Operating across a temperature range of -40°C to 125°C (TA), the SFH-4813 finds application in various sectors including industrial automation, security systems, and optical sensing technologies. The bulk packaging is suitable for high-volume manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 70° |
| Current - DC Forward (If) (Max) | 300mA |
| Radiant Intensity (Ie) Min @ If | 2.5mW/sr @ 100mA |
