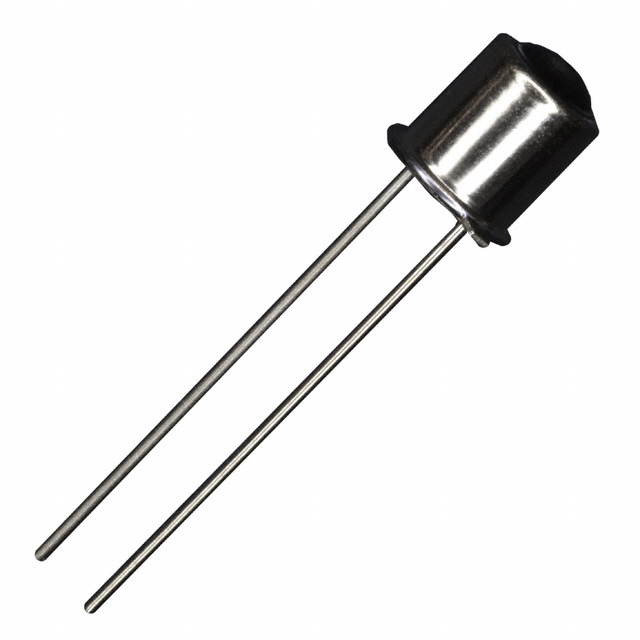

SFH 4811
EMITTER IR 950NM 300MA TO-46Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-4811 is a high-efficiency infrared (IR) emitter with a peak wavelength of 950nm. This component is designed for through-hole mounting within a TO-46-2 lens top metal can package. It features a narrow 10° viewing angle, ensuring precise beam directionality. The SFH-4811 operates with a typical forward voltage of 1.3V and can handle a continuous forward current of up to 300mA. At 100mA, it delivers a radiant intensity of 25mW/sr. This emitter is suitable for applications requiring targeted IR illumination, such as proximity sensing, optical encoding, and security systems. The operating temperature range is -40°C to 125°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-46-2 Lens Top Metal Can |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 10° |
| Current - DC Forward (If) (Max) | 300mA |
| Radiant Intensity (Ie) Min @ If | 25mW/sr @ 100mA |
