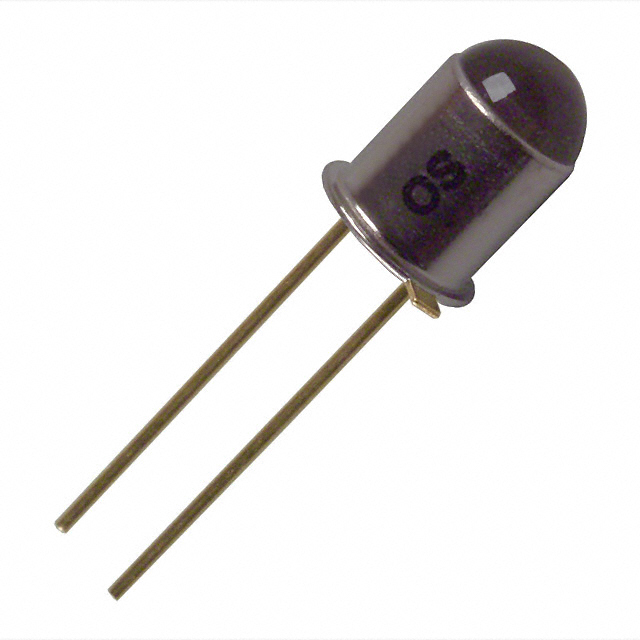

SFH 480
EMITTER IR 880NM 200MA TO-18Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. SFH-480 is an 880nm infrared (IR) emitter with a 12° viewing angle. This TO-18-2 metal can component is designed for through-hole mounting and operates with a typical forward voltage of 1.5V and a maximum DC forward current of 200mA. At 100mA, it provides a radiant intensity of 40mW/sr. The SFH-480 is suitable for applications in industrial automation, security systems, and optical sensing. Its operating temperature range is -40°C to 125°C (TA).
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-18-2 Metal Can |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 12° |
| Current - DC Forward (If) (Max) | 200mA |
| Radiant Intensity (Ie) Min @ If | 40mW/sr @ 100mA |
