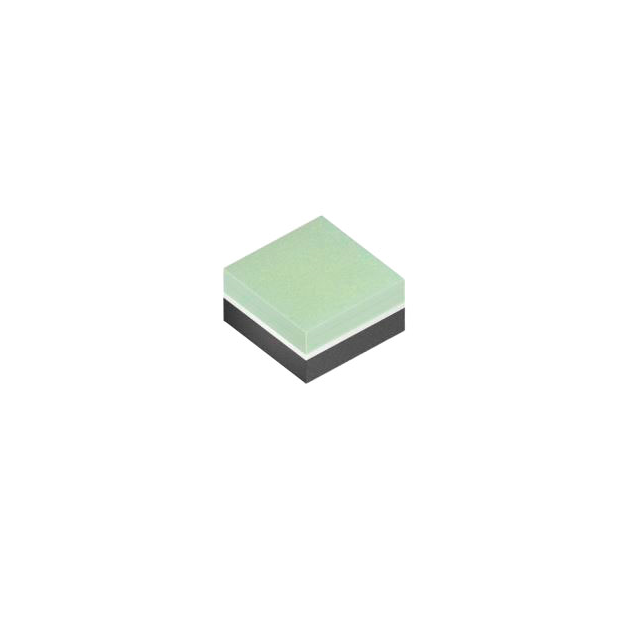

SFH 4737
OSLON P1616. IR BROADBAND EMITTEManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. OSLON® P1616 SFH-4737 is a 1050nm infrared emitter. This surface mount component features a 2.9V forward voltage and a maximum forward current of 500mA. It delivers typical radiant intensity of 27mW/sr at 350mA with a wide 130° viewing angle. The SFH-4737 is housed in a 2-SMD, No Lead package, supplied on tape and reel. Applications include industrial automation, medical technology, and security systems. Operating temperature range is -40°C to 85°C.
Additional Information
Series: OSLON® P1616RoHS Status: ROHS3 CompliantManufacturer Lead Time: 99 week(s)Product Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Wavelength | 1050nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C |
| Voltage - Forward (Vf) (Typ) | 2.9V |
| Viewing Angle | 130° |
| Current - DC Forward (If) (Max) | 500mA |
| Radiant Intensity (Ie) Min @ If | 27mW/sr @ 350mA (Typ) |
