SFH 4735
OSLON BLACK FLATManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

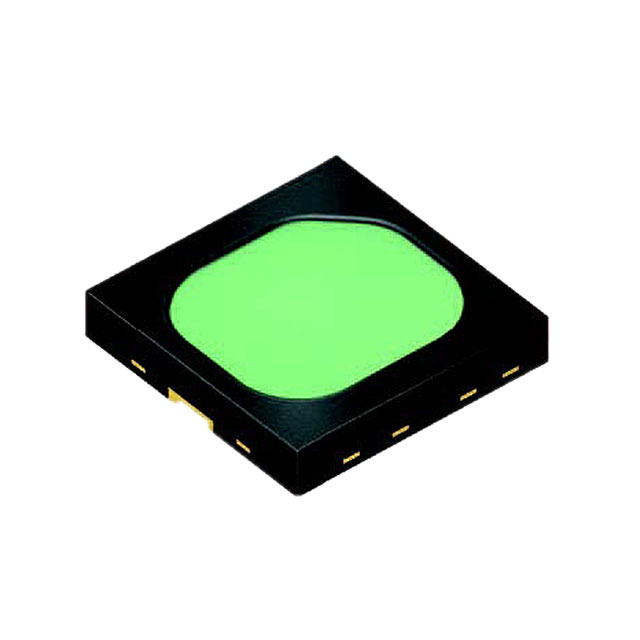

The ams-OSRAM USA INC. OSLON® Black series SFH-4735 is a high-performance infrared emitter engineered for demanding applications. This 3-SMD, No Lead component offers a typical forward voltage of 2.95V and a maximum forward current of 500mA. Its radiant intensity is specified at 59mW/sr at 350mA, with a broad 120° viewing angle, facilitating efficient illumination over a wide area. Designed for surface mounting, the SFH-4735 is supplied on tape and reel for automated assembly. Operating across a temperature range of -40°C to 85°C, this emitter is suitable for integration into systems requiring reliable IR output, including automotive lighting, industrial automation, and security surveillance.
Additional Information
Series: OSLON® BlackRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Wavelength | - |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 2.95V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 500mA |
| Radiant Intensity (Ie) Min @ If | 59mW/sr @ 350mA (Typ) |
