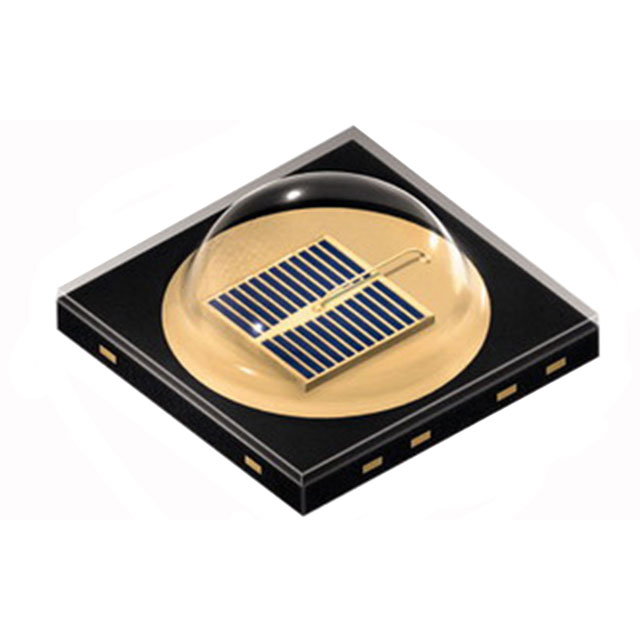

SFH 4726S E9599
EMITTER IRManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. OSLON® Black SFH-4726S-E9599 is a high-power infrared emitter designed for demanding applications. This surface-mount component delivers 950nm radiation with a typical forward voltage of 2.65V and a maximum DC forward current of 1A. It achieves a radiant intensity of 180mW/sr at 1A, making it suitable for applications requiring efficient IR output. The emitter features a wide 150° viewing angle and is housed in a 3-SMD, No Lead package, facilitating integration into compact designs. Operating across a temperature range of -40°C to 125°C, the SFH-4726S-E9599 is commonly utilized in industrial automation, security systems, and medical sensing. It is supplied in Tape & Reel packaging for automated assembly processes.
Additional Information
Series: OSLON® BlackRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Wavelength | 950nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Forward (Vf) (Typ) | 2.65V |
| Viewing Angle | 150° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | 180mW/sr @ 1A |
