SFH 4726S
EMITTER IR 950NMManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

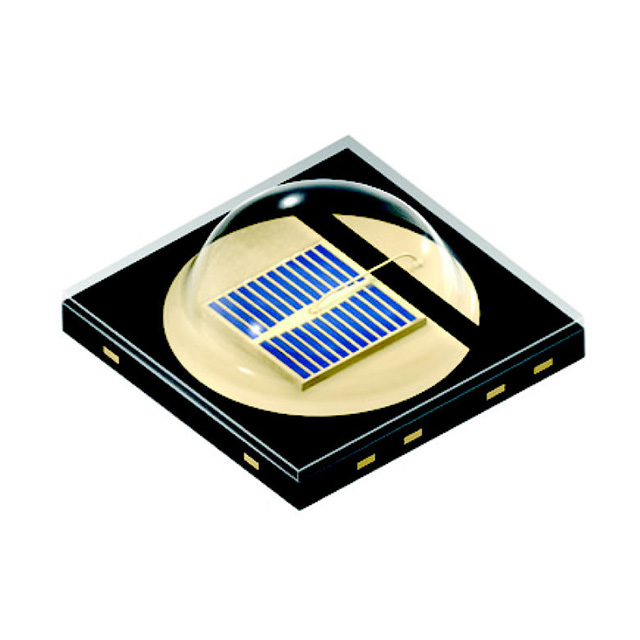

The ams-OSRAM USA INC. SFH-4726S is an infrared emitter designed for high-performance applications. This surface-mount component features a 950nm wavelength, crucial for various sensing and communication tasks. With a typical forward voltage of 2.75V and a maximum DC forward current of 1A, it delivers a radiant intensity of 215mW/sr at 1A. The SFH-4726S boasts a wide 150° viewing angle and is housed in a 3-SMD, No Lead package, suitable for automated assembly. Its operating temperature range of -40°C to 125°C (TA) ensures reliability in demanding environments. This emitter finds application in sectors such as automation, security systems, and optical sensing. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Wavelength | 950nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Forward (Vf) (Typ) | 2.75V |
| Viewing Angle | 150° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | 215mW/sr @ 1A |
