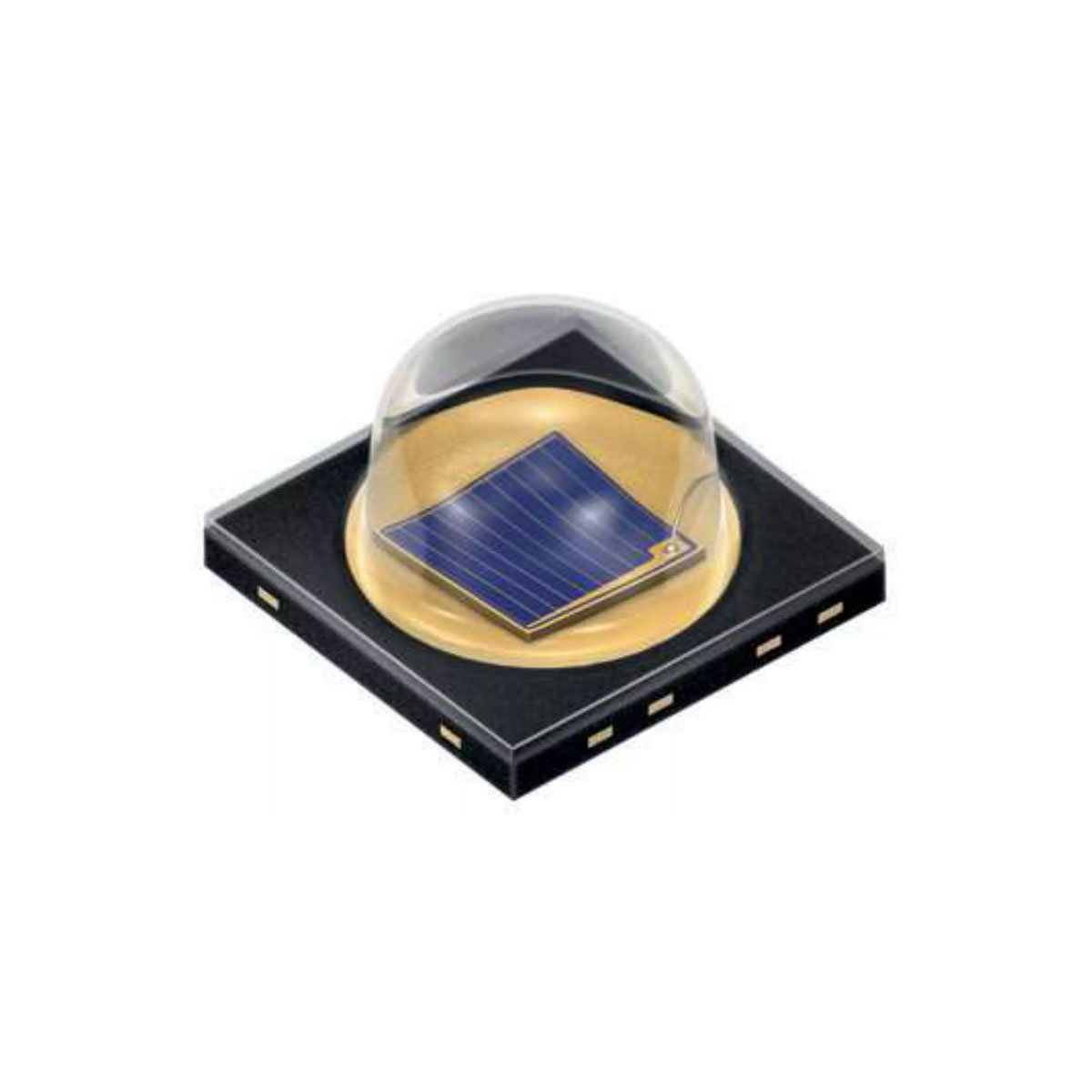

SFH 4725AS-DBEB-1113-R18
OLSON BLACKManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
Infrared (IR) Emitter 950nm 2.8V 1.5A 560mW/sr @ 1A 80° 3-SMD, No Lead
Additional Information
Series: OSLON® BlackRoHS Status: RoHS CompliantManufacturer Lead Time: 8 week(s)Product Status: ActivePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Wavelength | 950nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Forward (Vf) (Typ) | 2.8V |
| Viewing Angle | 80° |
| Current - DC Forward (If) (Max) | 1.5A |
| Radiant Intensity (Ie) Min @ If | 560mW/sr @ 1A |
| Grade | - |
| Qualification | - |
