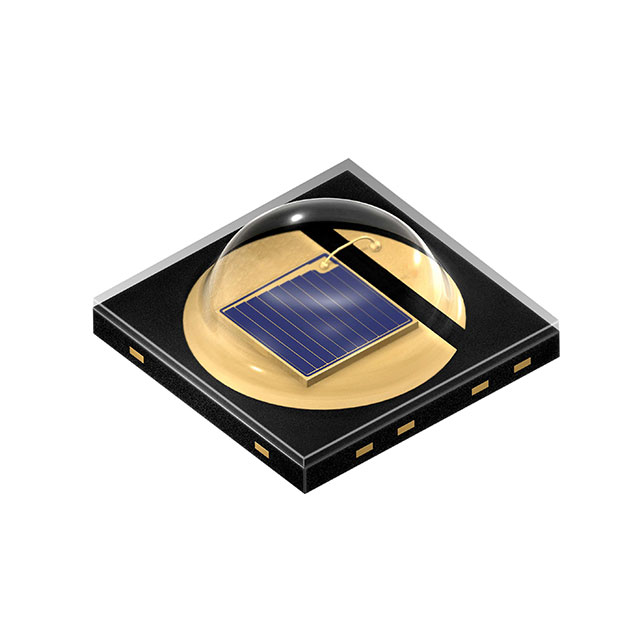

SFH 4716AS-FR
EMITTER IR 860NM 3SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-4716AS-FR is an OSLON® Black series infrared emitter. This 860nm, 3-SMD, No Lead component offers a forward voltage of 3.15V and a maximum forward current of 1.5A. It delivers a radiant intensity of 224mW/sr at 1A and features a broad 150° viewing angle. Designed for surface mounting, this emitter operates within a temperature range of -40°C to 125°C. Commonly utilized in automotive lighting, industrial automation, and security surveillance systems, the SFH-4716AS-FR is supplied in Tape & Reel packaging.
Additional Information
Series: OSLON® BlackRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Wavelength | 860nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Forward (Vf) (Typ) | 3.15V |
| Viewing Angle | 150° |
| Current - DC Forward (If) (Max) | 1.5A |
| Radiant Intensity (Ie) Min @ If | 224mW/sr @ 1A |
