SFH 4713A C1006
EMITTER IRManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

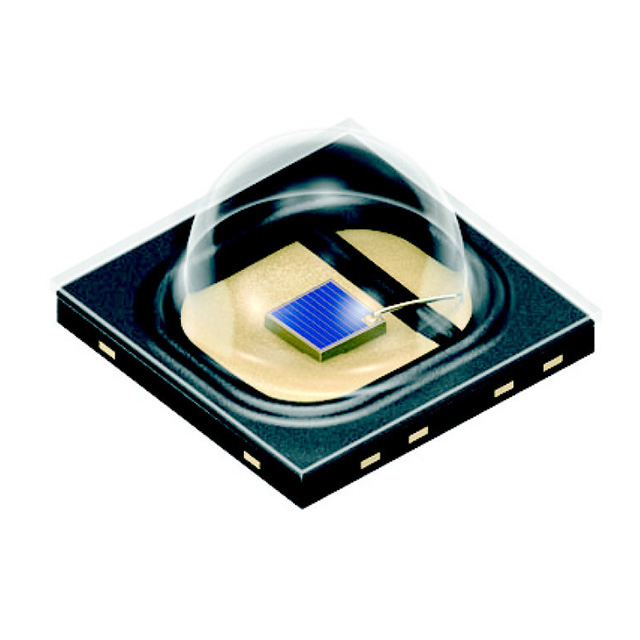

The ams-OSRAM USA INC. SFH-4713A-C1006 is an OSLON® Black series infrared emitter. This surface-mount component provides a peak wavelength of 860nm with a typical forward voltage of 1.75V at 1A. It is designed for a maximum DC forward current of 1A, delivering a radiant intensity of 280mW/sr at this current. The emitter features an 80° viewing angle and a 3-SMD, No Lead package suitable for automated assembly processes. Operating within a temperature range of -40°C to 125°C, the SFH-4713A-C1006 is ideal for applications in automotive lighting, industrial automation, and security surveillance systems. The component is supplied in Tape & Reel packaging.
Additional Information
Series: OSLON® BlackRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 3-SMD, No Lead |
| Wavelength | 860nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C |
| Voltage - Forward (Vf) (Typ) | 1.75V |
| Viewing Angle | 80° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | 280mW/sr @ 1A |
