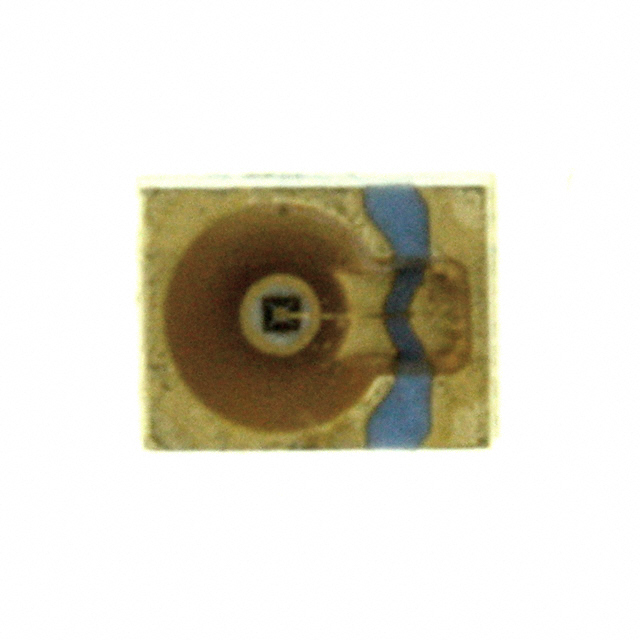

SFH 4685-Z
EMITTER IR 880NM 100MA SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-4685-Z is an infrared (IR) emitter designed for demanding applications. This surface-mount component features a peak wavelength of 880nm and a typical forward voltage of 1.5V at 100mA. The SFH-4685-Z delivers a radiant intensity of 10mW/sr at 100mA with a viewing angle of 40°. Its 2-SMD, No Lead package is suitable for automated assembly. Operating within a temperature range of -40°C to 100°C (TA), this emitter is commonly utilized in industrial automation, security systems, and automotive sensing. The component is provided on tape and reel for efficient manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Wavelength | 880nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 40° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 10mW/sr @ 100mA |
