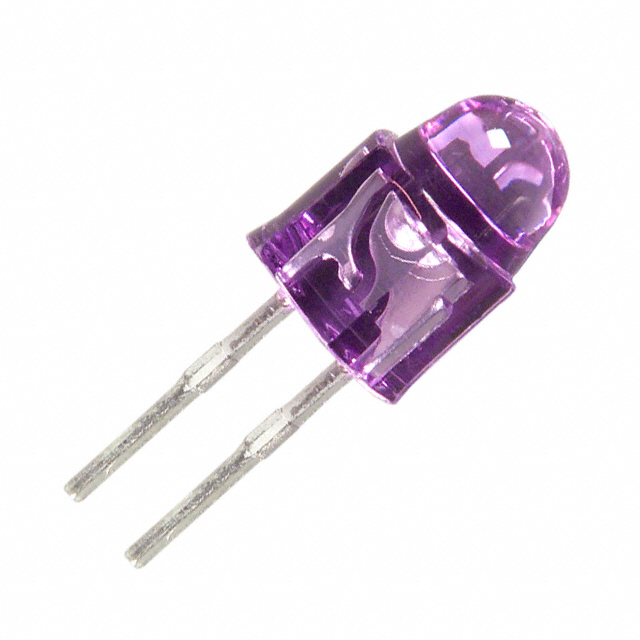

SFH 4585
EMITTER IR 880NM 100MA RADIALManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-4585 is an infrared (IR) emitter designed for applications requiring robust optical performance. This component features a peak wavelength of 880nm, ensuring efficient emission in the near-infrared spectrum. With a forward current (If) rating of 100mA, it delivers a typical forward voltage (Vf) of 1.5V. The radiant intensity (Ie) is specified at a minimum of 25mW/sr at 100mA, providing consistent optical output. Its 30° viewing angle is optimized for directional illumination.
The SFH-4585 is housed in a radial package suitable for through-hole mounting, with a top-view orientation. It is supplied on tape and reel for efficient automated assembly processes. This emitter is engineered for operation across a wide temperature range of -40°C to 100°C (TA), making it suitable for demanding environmental conditions. Applications include proximity sensing, optical switches, and general IR illumination in industrial, automotive, and consumer electronics sectors.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Radial |
| Wavelength | 880nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 30° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 25mW/sr @ 100mA |
