SFH 4580
EMITTER IR 880NM 100MA RADIALManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

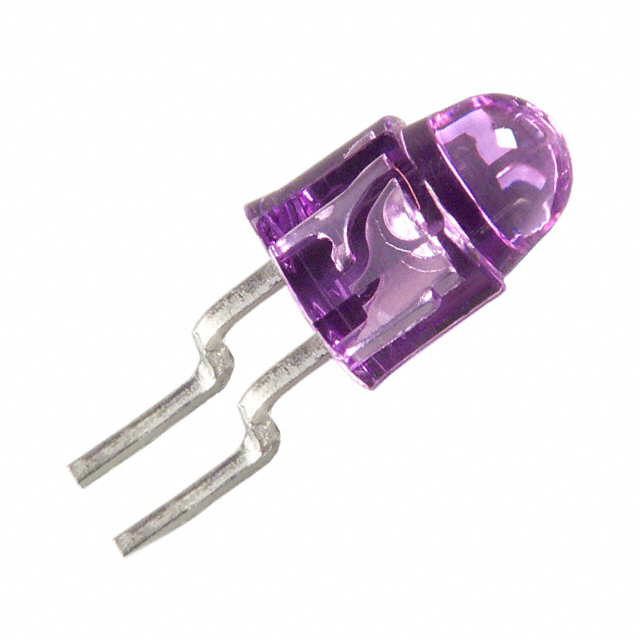

ams-OSRAM USA INC. SFH-4580 is an infrared emitter designed for precise optical sensing applications. This radial-leaded component operates at a peak wavelength of 880nm, making it suitable for a variety of industrial and consumer electronics, including security systems, automation, and proximity detection. Featuring a forward voltage (Vf) of 1.5V and a maximum DC forward current (If) of 100mA, the SFH-4580 delivers a radiant intensity of 25mW/sr at its rated current. Its 30° viewing angle ensures focused light emission. The component is provided in a formed radial package, suitable for surface mounting and supplied on tape and reel for efficient manufacturing processes. Operating across a temperature range of -40°C to 100°C (TA), this emitter offers reliable performance in demanding environments.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Radial - 2 Lead, Formed |
| Wavelength | 880nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 30° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 25mW/sr @ 100mA |
