SFH 4556P
EMITTER IR 850NM 100MAManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

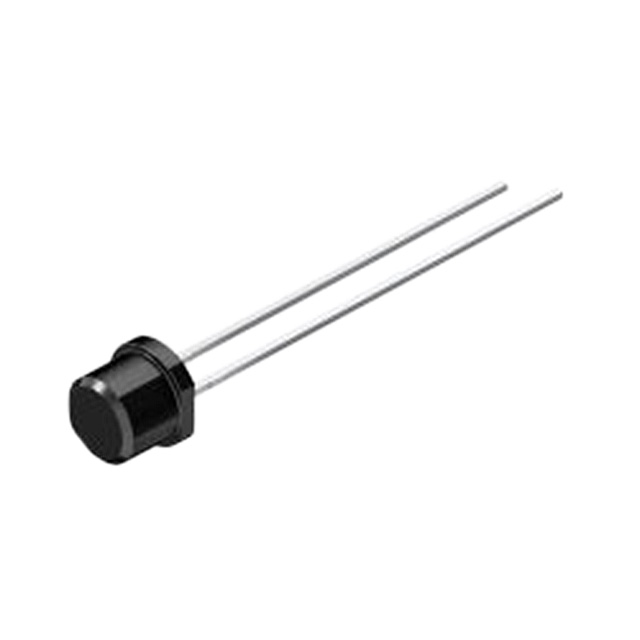

The ams-OSRAM USA INC. SFH-4556P is an 850nm infrared emitter designed for through-hole mounting. This radial package component operates with a typical forward voltage of 1.7V and a maximum DC forward current of 100mA. At its rated current, it delivers a radiant intensity of 6.3mW/sr, with a broad viewing angle of 130°. The SFH-4556P is suitable for applications requiring near-infrared illumination, including automotive sensing, industrial automation, and security systems. Its operating temperature range is -40°C to 100°C. This component is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 850nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Viewing Angle | 130° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 6.3mW/sr @ 100mA |
