SFH 4554-DWEW
RADIAL T1 3/4Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

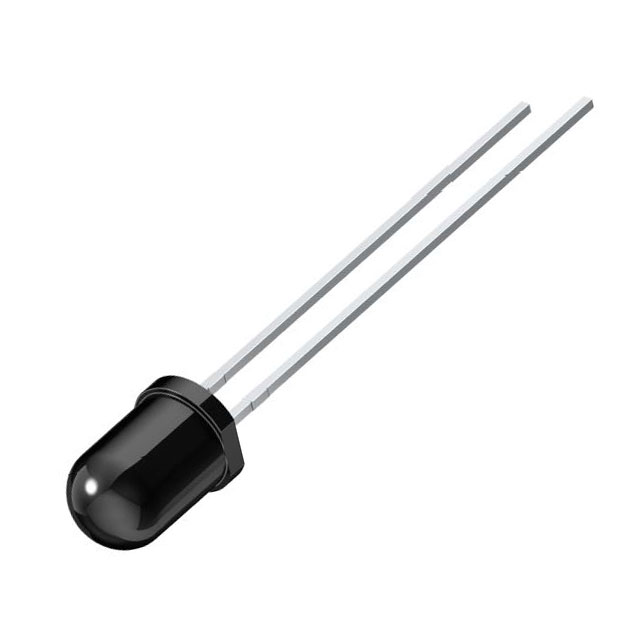

ams-OSRAM USA INC. presents the SFH-4554-DWEW, an infrared (IR) emitter with a wavelength of 860nm. This through-hole mounted component features a radial package and a 20° viewing angle. Designed for efficient operation, it requires a typical forward voltage of 1.7V and supports a maximum DC forward current of 100mA, delivering a radiant intensity of 400mW/sr at this current. The emitter operates within a temperature range of -40°C to 100°C (TA). This component is commonly utilized in applications requiring precise infrared illumination, such as optical sensing, security systems, and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 860nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.7V |
| Viewing Angle | 20° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 400mW/sr @ 100mA |
