SFH 4516
EMITTER IR 950NM 100MA RADIALManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

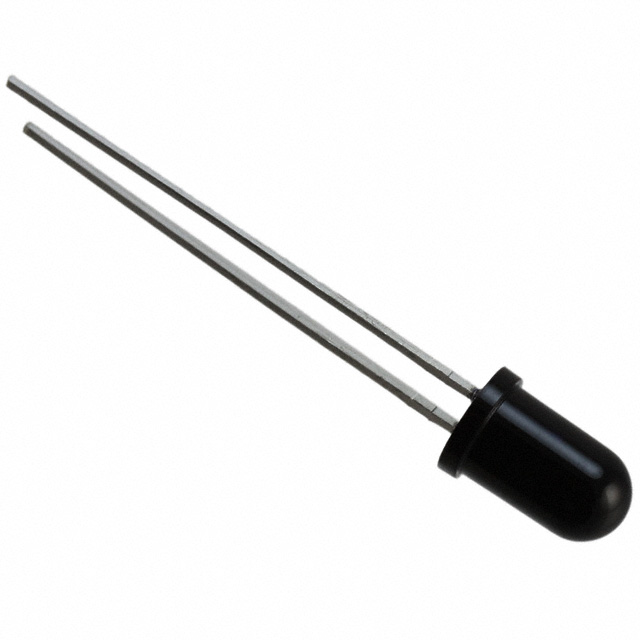

ams-OSRAM USA INC. SFH-4516 is a radial-mount infrared (IR) emitter designed for high-performance applications. This component operates at a wavelength of 950nm with a typical forward voltage of 1.3V and a maximum DC forward current of 100mA. It delivers a radiant intensity of 45mW/sr at 100mA, featuring a narrow viewing angle of 34 degrees. The SFH-4516 is housed in a standard 5mm (T 1 3/4) radial package with a through-hole mounting type and a top-view orientation. Its broad operating temperature range from -40°C to 100°C (TA) makes it suitable for demanding environments. This IR emitter is commonly utilized in industrial automation, security systems, and optical sensing applications.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, 5mm Dia (T 1 3/4) |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 34° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 45mW/sr @ 100mA |
