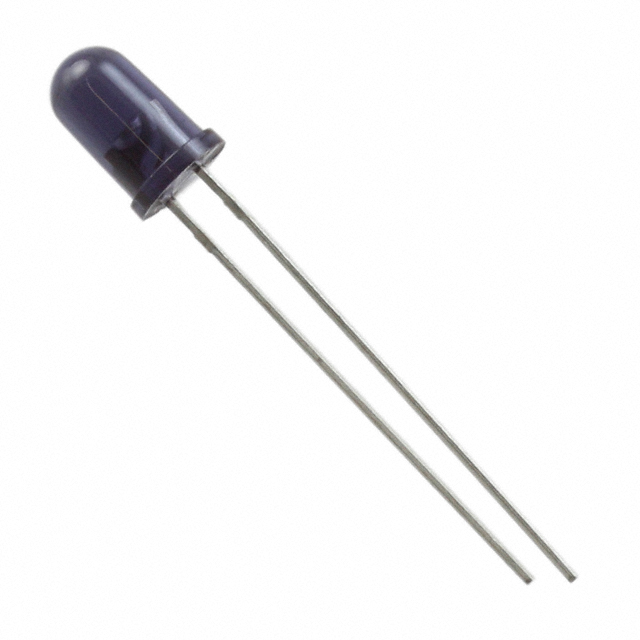

SFH 4512
EMITTER IR 950NM 100MA RADIALManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. SFH-4512 is an infrared (IR) emitter with a peak wavelength of 950nm. This through-hole component features a 20° viewing angle and a forward voltage (Vf) of 1.3V typical. Designed for a maximum DC forward current (If) of 100mA, it delivers a radiant intensity of 20mW/sr at this current. The emitter is housed in a 5mm diameter radial package (T 1 3/4) and operates within a temperature range of -40°C to 100°C (TA). The SFH-4512 is suitable for applications in industrial automation, security systems, and medical devices.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial, 5mm Dia (T 1 3/4) |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 20° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 20mW/sr @ 100mA |
