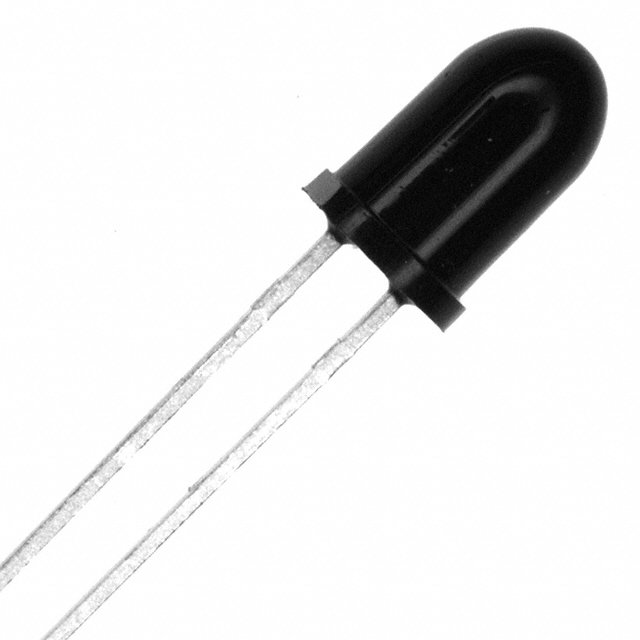

SFH 4511
EMITTER IR 950NM 100MA RADIALManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-4511 is a compact radial-packaged infrared emitter designed for demanding applications. This component features a peak wavelength of 950nm, making it suitable for a wide range of sensing and communication systems. With a maximum DC forward current of 100mA, it delivers a typical forward voltage of 1.3V and a radiant intensity of 63mW/sr at 100mA. The narrow 8° viewing angle ensures precise beam control. Operating within a temperature range of -40°C to 100°C, the SFH-4511 is ideal for use in automotive, industrial automation, and security systems where reliable IR illumination is critical. Its through-hole mounting type facilitates robust assembly in various circuit designs.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 8° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 63mW/sr @ 100mA |
