SFH 4510
EMITTER IR 950NM 100MA T 1 3/4Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

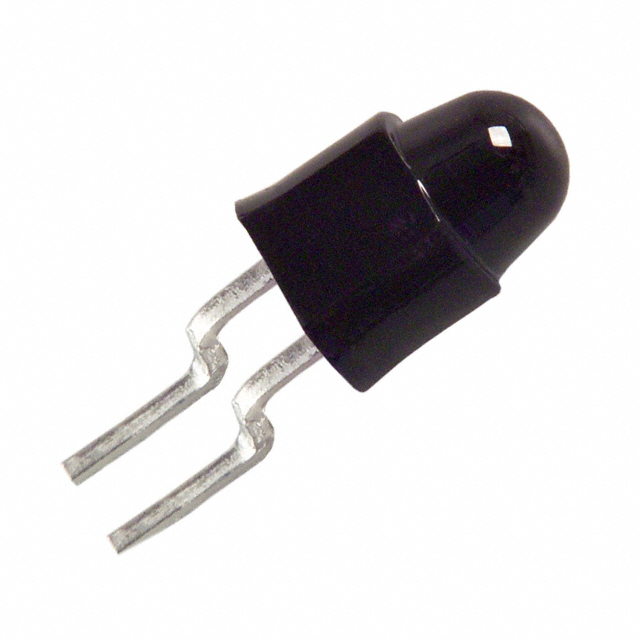

ams-OSRAM USA INC. SFH-4510 is a through-hole mounted infrared (IR) emitter with a peak wavelength of 950nm. This T 1 3/4 package component operates with a typical forward voltage of 1.3V and a maximum DC forward current of 100mA. At 100mA, it delivers a radiant intensity of 25mW/sr, with a viewing angle of 28°. The SFH-4510 is designed for applications within the industrial, automotive, and medical sectors, where reliable IR emission is critical. It is supplied on tape and reel, with an operating temperature range of -40°C to 100°C.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | T 1 3/4 |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 28° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 25mW/sr @ 100mA |
