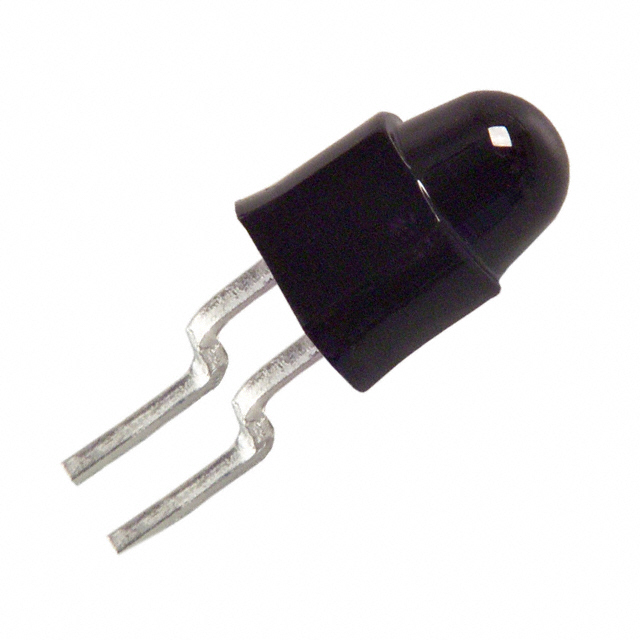

SFH 4500
EMITTER IR 950NM 100MA RADIALManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-4500 is an infrared (IR) emitter designed for applications requiring precise optical signaling. This radial, 2-lead component emits at a wavelength of 950nm with a typical forward voltage of 1.5V and a maximum DC forward current of 100mA. At its rated current, it delivers a radiant intensity of 25mW/sr, with a narrow viewing angle of 20°. The SFH-4500 is suitable for surface-mount applications and operates within an extended temperature range of -40°C to 100°C. Its compact, formed radial package and reliable performance make it a valuable component in automotive, industrial automation, and security systems. The component is supplied in Tape & Reel packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | Radial - 2 Lead, Formed |
| Wavelength | 950nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 20° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 25mW/sr @ 100mA |
