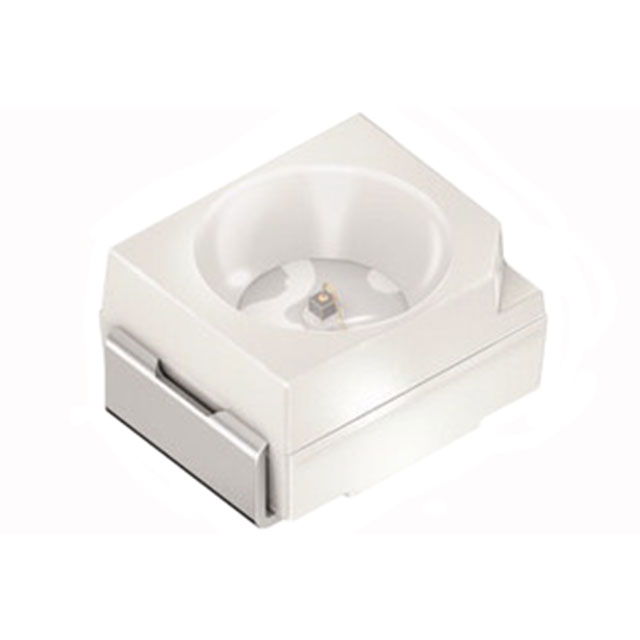

SFH 4283-Z
EMITTER IR 880NM 100MA SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-4283-Z is an infrared (IR) emitter designed for robust performance in demanding applications. This surface-mount component features a wavelength of 880nm and a typical forward voltage of 1.5V at a maximum DC forward current of 100mA. It delivers a minimum radiant intensity of 4mW/sr at 100mA, with a wide 120° viewing angle. The SFH-4283-Z is housed in a 2-SMD, No Lead package, suitable for automated assembly. Operating across a temperature range of -40°C to 100°C (TA), it is supplied on tape and reel for efficient production workflows. This emitter finds application in areas such as industrial automation, security systems, and sensor technology.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Wavelength | 880nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 4mW/sr @ 100mA |
