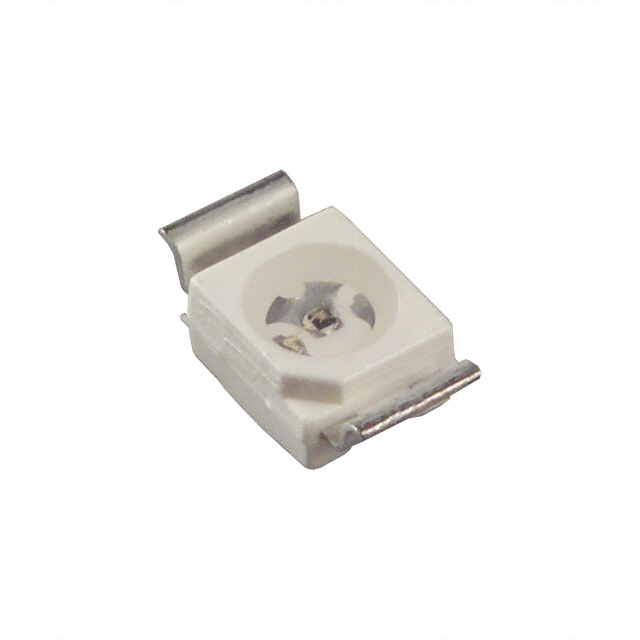

SFH 4281
EMITTER IR 880NM 100MA SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. SFH-4281 is an infrared emitter designed for surface-mount applications. This component operates at a forward current of 100mA, with a typical forward voltage of 1.5V. It emits radiation at a wavelength of 880nm, providing a radiant intensity of a minimum of 4mW/sr at 100mA. The emitter features a wide 120° viewing angle and is packaged in a 2-SMD, Z-Bend configuration, supplied on tape and reel. Operating across a temperature range of -40°C to 100°C (TA), this device is suitable for various industrial automation, medical, and security applications requiring reliable infrared illumination.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Z-Bend |
| Wavelength | 880nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 4mW/sr @ 100mA |
