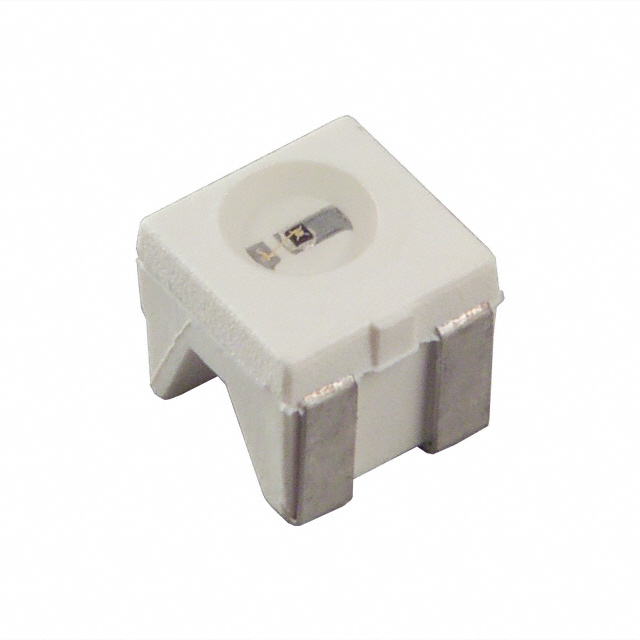

SFH 426
EMITTER IR 880NM 100MA SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. SFH-426 is an infrared (IR) emitter designed for surface mount integration. This component operates at a forward voltage of 1.5V (typ) and has a maximum forward current of 100mA. It emits at a wavelength of 880nm, with a radiant intensity of 4mW/sr at 100mA. The SFH-426 features a wide 120° viewing angle and is housed in a 2-SMD, Boomerang package, suitable for tape and reel assembly. Its operating temperature range is from -40°C to 100°C (TA). Common applications for this type of IR emitter include proximity sensing, optical data transmission, and industrial automation systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Boomerang |
| Wavelength | 880nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 4mW/sr @ 100mA |
