SFH 4252-Z
EMITTER IR 850NM 100MA 2-LCCManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

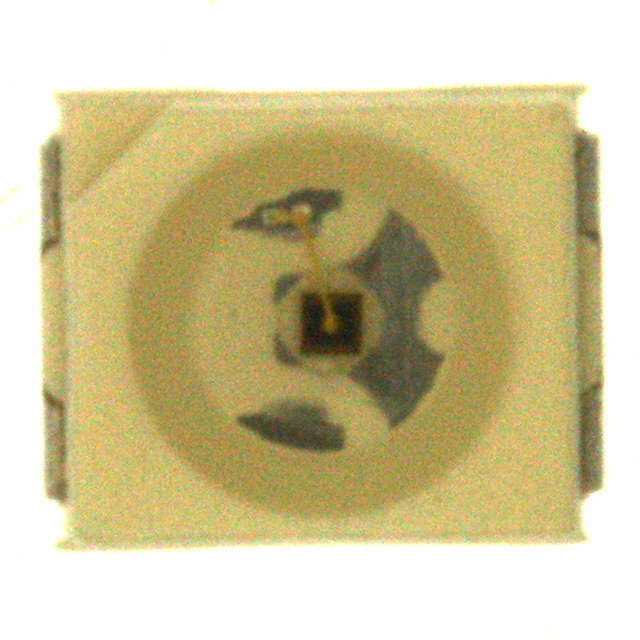

ams-OSRAM USA INC. SFH-4252-Z is an infrared (IR) emitter designed for surface mount applications. This component operates with a typical forward voltage of 1.5V and a maximum DC forward current of 100mA. It delivers a radiant intensity of a minimum of 10mW/sr at 100mA, with a wide viewing angle of 120 degrees. The emitter's wavelength is centered at 850nm. Packaged in a 2-LCC (J-Lead) surface mount configuration and supplied on tape and reel, the SFH-4252-Z is suitable for operations within an ambient temperature range of -40°C to 100°C. This IR emitter finds application in various industries including automotive, industrial automation, and security systems where reliable IR illumination is critical.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-LCC (J-Lead) |
| Wavelength | 850nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 10mW/sr @ 100mA |
