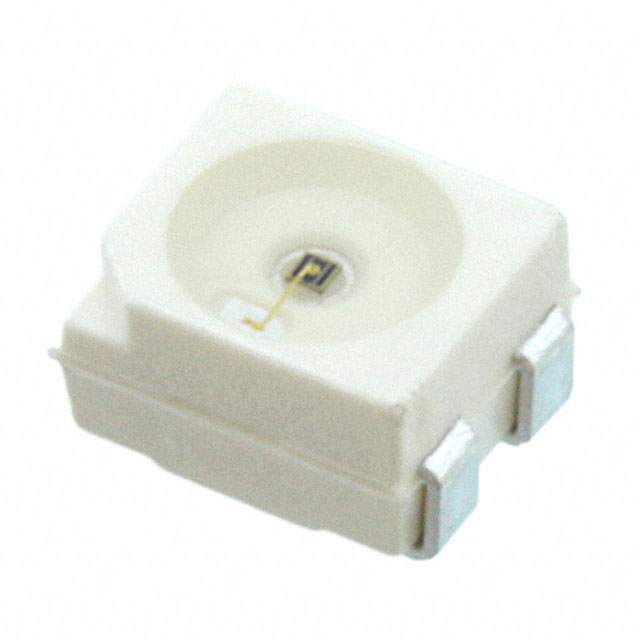

SFH 4250S-S
POWER TOPLEDManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. Power TOPLED series SFH-4250S-S is an infrared (IR) emitter designed for surface mount applications. This component operates with a forward voltage of 3.1V and a maximum DC forward current of 100mA. It features a wavelength of 860nm and offers a radiant intensity of 28mW/sr at 100mA. The emitter has a wide viewing angle of 120° and is housed in a 4-PLCC package. Operating within a temperature range of -40°C to 100°C (TA), this component is suitable for use in automotive, industrial, and security systems. The SFH-4250S-S is supplied in tape and reel packaging.
Additional Information
Series: Power TOPLED®RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 4-PLCC |
| Wavelength | 860nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 3.1V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 28mW/sr @ 100mA |
