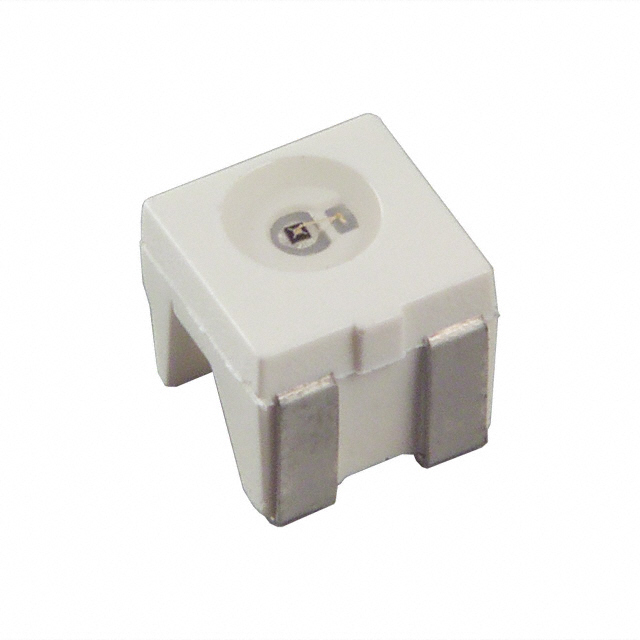

SFH 425
EMITTER IR 950NM 100MA SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-425 is a surface-mount infrared emitter with a peak wavelength of 950nm. This component features a typical forward voltage of 1.3V and a maximum DC forward current of 100mA, delivering a radiant intensity of 2.5mW/sr at its rated current. The SFH-425 utilizes a 2-SMD, Boomerang package with a wide 120° viewing angle, suitable for side-view applications. Operating across a temperature range of -40°C to 100°C, it is supplied on tape and reel for automated assembly. This device finds application in various sectors, including industrial automation, security systems, and consumer electronics for proximity sensing and data transmission.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Boomerang |
| Wavelength | 950nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 2.5mW/sr @ 100mA |
Request a Quote
