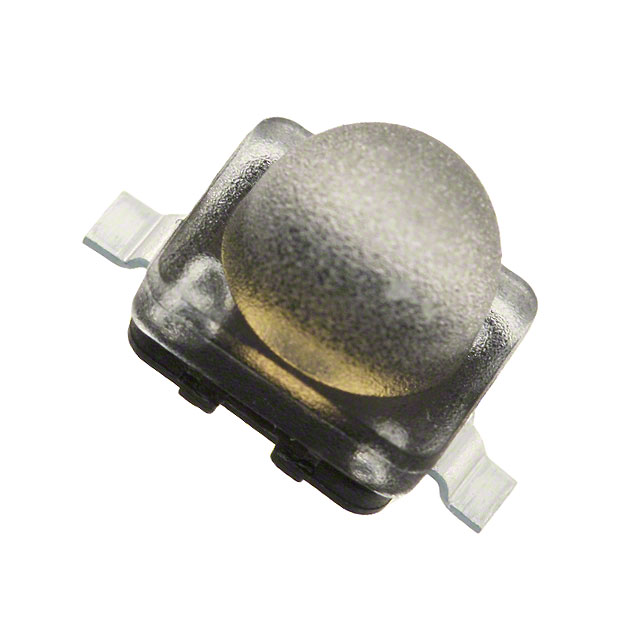

SFH 4239
EMITTER IR 940NM 1A SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM SFH-4239 is a high-power infrared emitter designed for demanding applications. This surface-mount component features a 940nm wavelength, ideal for optical sensing, security systems, and industrial automation. With a forward current (If) of up to 1A, it delivers a radiant intensity of 250mW/sr at 1A. The SFH-4239 operates at a typical forward voltage (Vf) of 1.4V and has a wide operating temperature range of -40°C to 125°C. Its 40° viewing angle and 2-SMD, Gull Wing package facilitate efficient integration into compact designs. This component is supplied on tape and reel for high-volume manufacturing processes.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Wavelength | 940nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Viewing Angle | 40° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | 250mW/sr @ 1A |
