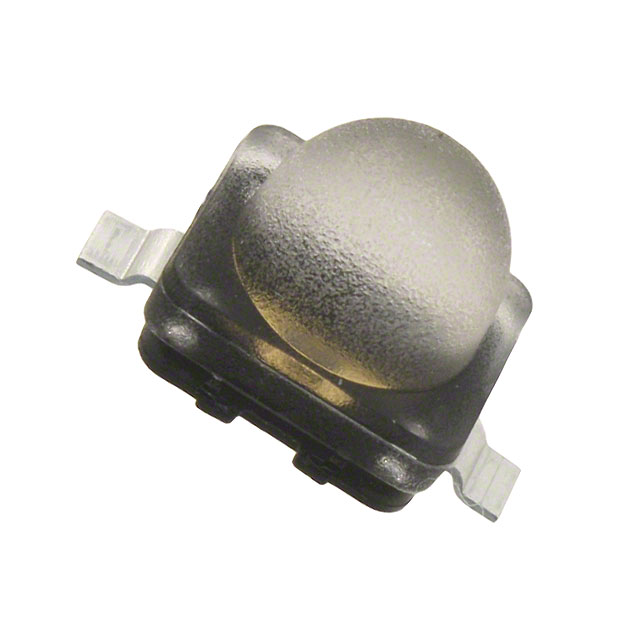

SFH 4236
EMITTER IR 850NM 1A SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. SFH-4236 is an infrared (IR) emitter designed for surface mount applications. This component features a peak wavelength of 850nm and a forward voltage of 1.5V. It is specified for a maximum DC forward current of 1A, delivering a radiant intensity of 250mW/sr at this current. The emitter has a viewing angle of 40 degrees and an orientation for top-view observation. Packaged in a 2-SMD, Gull Wing configuration, it is supplied on tape and reel. The operating temperature range for this device is -40°C to 125°C (TA). This IR emitter is suitable for applications in automotive, industrial, and security systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Wavelength | 850nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 40° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | 250mW/sr @ 1A |
