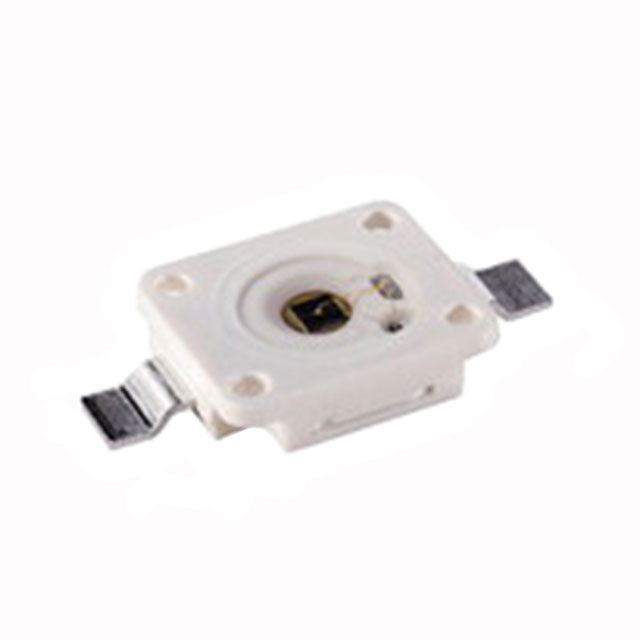

SFH 4235-Z
EMITTER IR 860NM 1A SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM USA INC. Platinum DRAGON series SFH-4235-Z is an infrared emitter designed for demanding applications. This surface-mount device features a 2-SMD, Gull Wing package and operates at a forward voltage of 3V with a maximum DC forward current of 1A. It delivers a radiant intensity of 320mW/sr at 1A with a wide 120° viewing angle. The SFH-4235-Z emits at a peak wavelength of 860nm, making it suitable for various optical sensing, illumination, and communication systems. Its robust construction allows for operation across an extended temperature range of -40°C to 125°C. This component finds application in automotive, industrial automation, and security systems. Packaged on tape and reel for automated assembly.
Additional Information
Series: Platinum DRAGONRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Wavelength | 860nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Forward (Vf) (Typ) | 3V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | 320mW/sr @ 1A |
