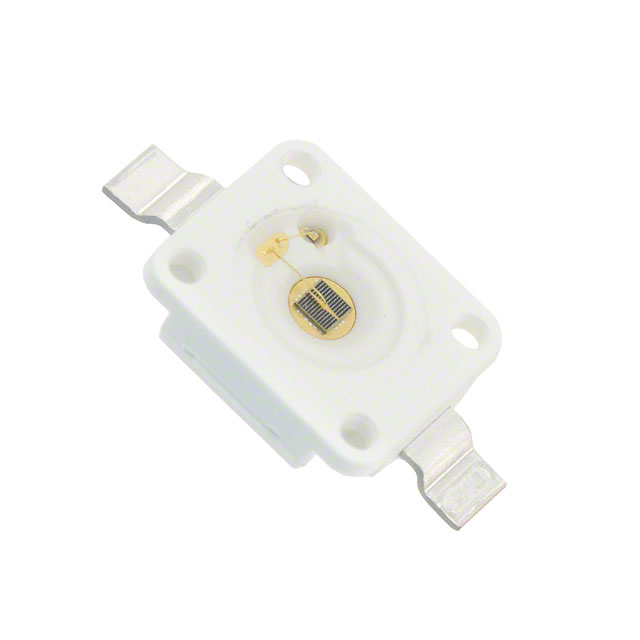

SFH 4233
EMITTER IR 940NM 1A SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM SFH-4233 is an infrared (IR) emitter designed for high-power applications. This surface-mount component features a 940nm wavelength and a typical forward voltage of 1.4V. It is rated for a maximum DC forward current of 1A, delivering a radiant intensity of 170mW/sr at this current. The wide 120° viewing angle ensures broad illumination. Housed in a 2-SMD gull wing package, the SFH-4233 is suitable for demanding environments with an operating temperature range of -40°C to 125°C. This component is commonly utilized in automotive lighting, industrial automation, security systems, and medical device applications. Supplied on tape and reel for efficient automated assembly.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Wavelength | 940nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.4V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | 170mW/sr @ 1A |
