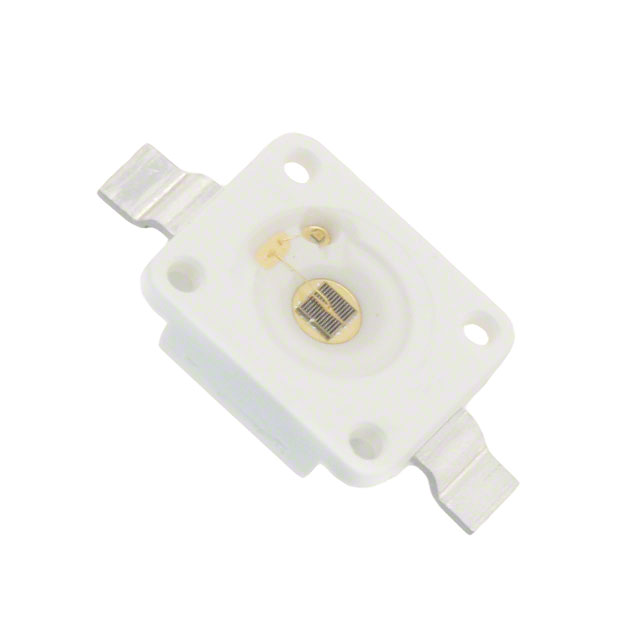

SFH 4232-Z
EMITTER IR 860NM 1A SMTManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-4232-Z is a Platinum DRAGON series infrared emitter designed for high-power output. This surface-mount component features a wavelength of 860nm and a typical forward voltage of 1.5V, supporting a maximum DC forward current of 1A. Its radiant intensity is rated at a minimum of 180mW/sr at 1A, with a wide 120° viewing angle. The 2-SMD, Gull Wing package is suitable for automated assembly processes, and the device operates within an ambient temperature range of -40°C to 125°C. This component is utilized in applications such as machine vision, security systems, and industrial automation.
Additional Information
Series: Platinum DRAGONRoHS Status: ROHS3 CompliantManufacturer Lead Time: 12 week(s)Product Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, Gull Wing |
| Wavelength | 860nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | 180mW/sr @ 1A |
