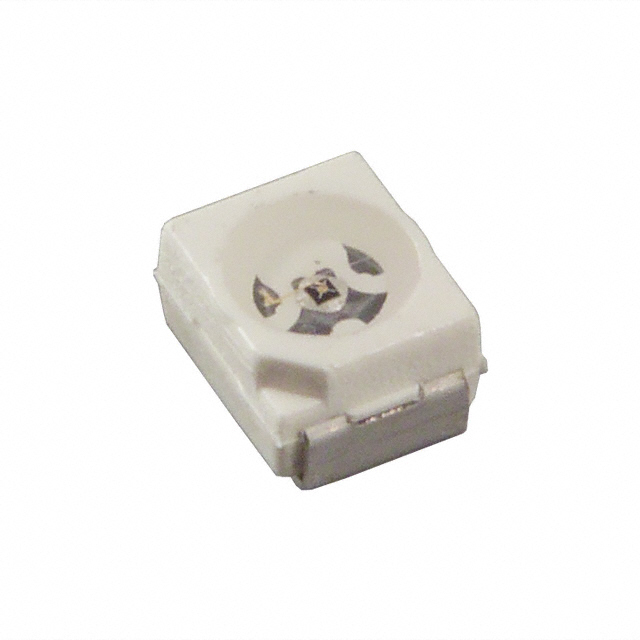

SFH 4211
EMITTER IR 950NM 100MA SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. SFH-4211 is a surface-mount infrared (IR) emitter designed for applications requiring precise optical signaling. This component emits at a wavelength of 950nm, with a typical forward voltage of 1.3V and a maximum DC forward current of 100mA. The SFH-4211 delivers a radiant intensity of 2.5mW/sr at its rated current, featuring a wide 120° viewing angle. Packaged in a 2-SMD, No Lead format and supplied on Tape & Reel (TR), it offers convenient integration into automated assembly processes. Its operating temperature range of -40°C to 100°C (TA) makes it suitable for demanding environments. This IR emitter finds utility in automotive lighting, industrial automation, and optical sensing systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, No Lead |
| Wavelength | 950nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 2.5mW/sr @ 100mA |
