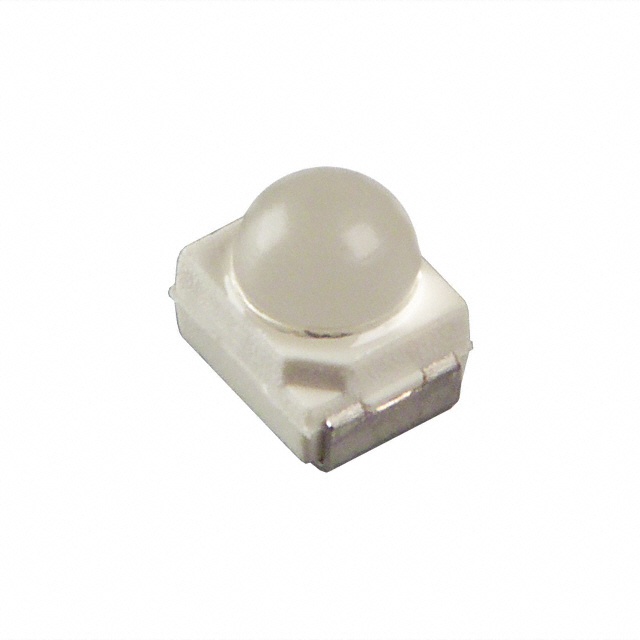

SFH 4209
EMITTER IR 950NM 100MA SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. SFH-4209 is a 950nm infrared (IR) emitter designed for surface mount applications. This component features a typical forward voltage of 1.5V and a maximum forward current of 100mA. It achieves a radiant intensity of 6.3mW/sr at 100mA with a 50° viewing angle. The SFH-4209 is housed in a 2-SMD, J-Lead package, suitable for automated assembly processes. Operating within a temperature range of -40°C to 100°C, this emitter finds application in various industries including industrial automation, security systems, and optical sensing. The component is supplied in tape and reel packaging for efficient handling.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2-SMD, J-Lead |
| Wavelength | 950nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 50° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 6.3mW/sr @ 100mA |
