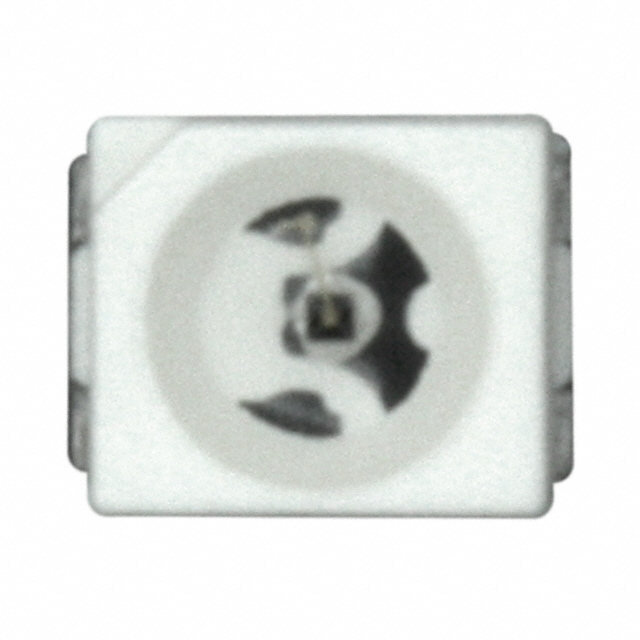

SFH 4200-Z
EMITTER IR 950NM 100MA 2015Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-4200-Z is a surface-mount infrared (IR) emitter with a peak wavelength of 950nm. This component is designed for a DC forward current (If) of up to 100mA, with a typical forward voltage (Vf) of 1.5V. At 100mA, it provides a radiant intensity (Ie) of 4mW/sr, featuring a wide 120° viewing angle. The emitter is housed in a 2015 (5138 Metric) package and is supplied on tape and reel. Operating within an ambient temperature range of -40°C to 100°C, the SFH-4200-Z is suitable for applications in automotive, industrial automation, and security systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 2015 (5138 Metric) |
| Wavelength | 950nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.5V |
| Viewing Angle | 120° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 4mW/sr @ 100mA |
