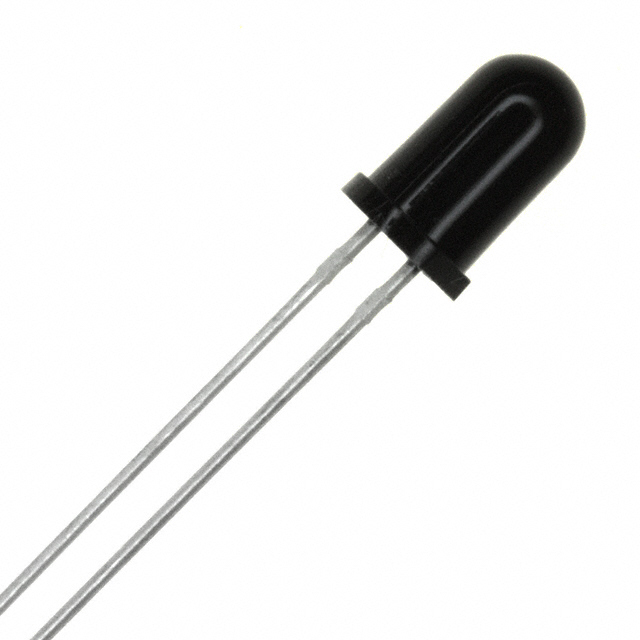

SFH 415 U
EMITTER IR 950NM 100MA RADIALManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. SFH-415-U is a 950nm infrared (IR) emitter. This radial package component offers a typical forward voltage of 1.3V and is rated for a maximum DC forward current of 100mA. At its maximum current, it delivers a radiant intensity of 40mW/sr, with a viewing angle of 34°. The emitter operates within a temperature range of -40°C to 100°C (TA) and utilizes through-hole mounting. Applications for this component include proximity sensing, optical data transmission, and security systems.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | Radial |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 34° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 40mW/sr @ 100mA |
