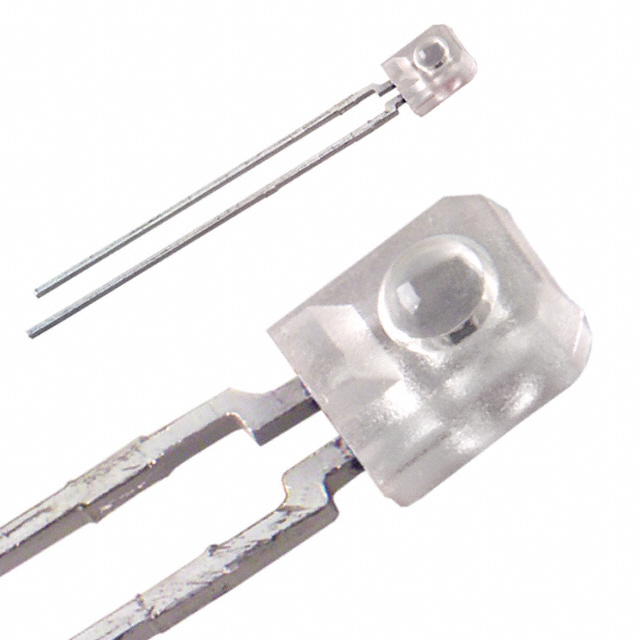

SFH 4110
EMITTER IR 950NM 60MA MINIManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. SFH-4110 is a 950nm infrared emitter designed for applications requiring precise optical signaling. This component features a forward voltage of 1.2V (typical) and a maximum DC forward current of 60mA. The SFH-4110 delivers a minimum radiant intensity of 2.5mW/sr at 20mA, with a narrow 18° viewing angle, enabling focused IR illumination. Its MINI package is suitable for through-hole mounting and operates within a temperature range of -40°C to 85°C. This IR emitter finds utility in various industries including automotive safety systems, industrial automation, and security monitoring.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | MINI |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Side View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.2V |
| Viewing Angle | 18° |
| Current - DC Forward (If) (Max) | 60mA |
| Radiant Intensity (Ie) Min @ If | 2.5mW/sr @ 20mA |
