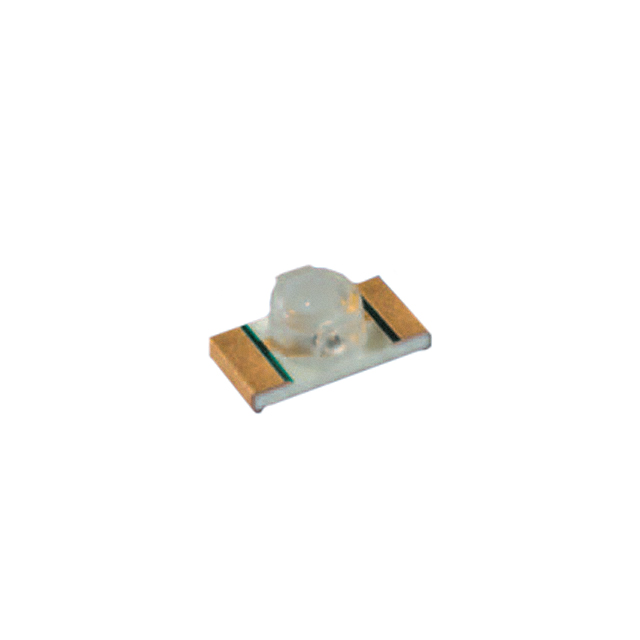

SFH 4058
EMITTER IR 850NM 70MA CHIPLEDManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. SFH-4058 is an infrared (IR) emitter designed for surface mount applications. This 850nm emitter features a typical forward voltage of 1.6V and a maximum DC forward current of 70mA. The SFH-4058 delivers a radiant intensity of 6.3mW/sr at its rated current, with an 80° viewing angle. It is housed in a 1206 (3216 Metric) package and operates within a temperature range of -40°C to 85°C. The component is supplied on tape and reel for efficient automated assembly. This IR emitter is commonly utilized in applications such as proximity sensing, security systems, and industrial automation.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Datasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Wavelength | 850nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Viewing Angle | 80° |
| Current - DC Forward (If) (Max) | 70mA |
| Radiant Intensity (Ie) Min @ If | 6.3mW/sr @ 70mA |
