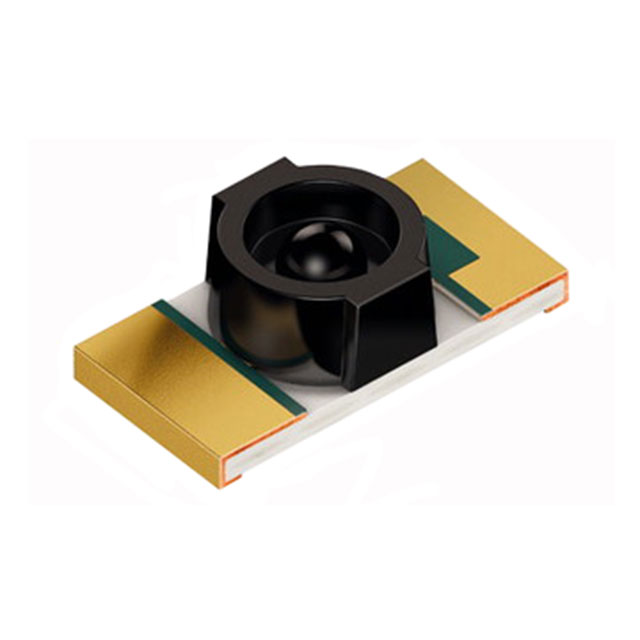

SFH 4046
EMITTER IR 950NM 70MA 1206Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
SFH 4046 is a high-quality electronic component designed for professional applications. This part offers reliable performance and meets industry standards for electronic design projects.
Additional Information
Series: CHIPLEDRoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: Tape & Reel (TR)Download Free CAD Model:
Technical Details:
| Packaging | Tape & Reel (TR) |
| Package / Case | 1206 (3216 Metric) |
| Wavelength | 950nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 85°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.6V |
| Viewing Angle | 44° |
| Current - DC Forward (If) (Max) | 70mA |
| Radiant Intensity (Ie) Min @ If | 30mW/sr @ 70mA |
