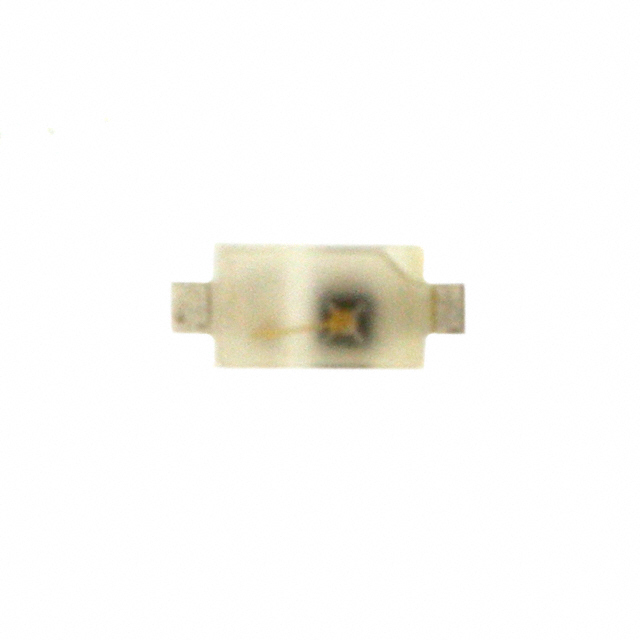

SFH 4010-Z
EMITTER IR 950NM 100MA SMDManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM SFH-4010-Z is a surface-mount infrared emitter designed for robust performance in demanding applications. Featuring a peak wavelength of 950nm, this component delivers a typical forward voltage of 1.3V and supports a maximum DC forward current of 100mA. Its radiant intensity is specified at a minimum of 1mW/sr at 100mA. The emitter boasts a wide viewing angle of 160°, facilitating broad illumination coverage. The 2-SMD, Flat Leads package with top-view orientation is suitable for automated assembly processes. Operating across an ambient temperature range of -40°C to 100°C, the SFH-4010-Z is utilized in industries such as industrial automation, security systems, and optical sensing.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | 2-SMD, Flat Leads |
| Wavelength | 950nm |
| Mounting Type | Surface Mount |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 160° |
| Current - DC Forward (If) (Max) | 100mA |
| Radiant Intensity (Ie) Min @ If | 1mW/sr @ 100mA |
