SFH 401
EMITTER IR 950NM 300MA TO-18Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

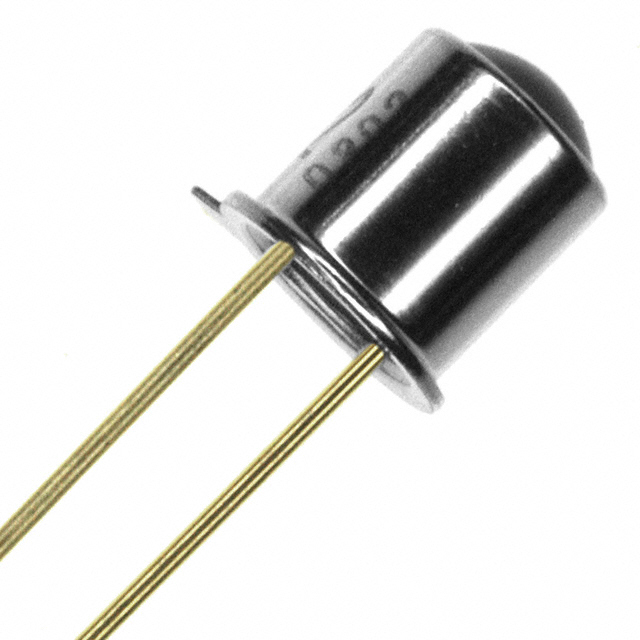

The ams-OSRAM USA INC. SFH-401 is a TO-18-2 Metal Can infrared emitter designed for through-hole mounting. This component operates with a typical forward voltage of 1.3V and a maximum DC forward current of 300mA. It emits infrared light at a wavelength of 950nm with a narrow viewing angle of 30°. At a forward current of 100mA, it provides a radiant intensity of 36mW/sr. The SFH-401 is suitable for applications in industrial automation, security systems, and optical sensing. It is rated for an operating temperature range of -40°C to 100°C. The packaging for this component is bulk.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-18-2 Metal Can |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 100°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 30° |
| Current - DC Forward (If) (Max) | 300mA |
| Radiant Intensity (Ie) Min @ If | 36mW/sr @ 100mA |
