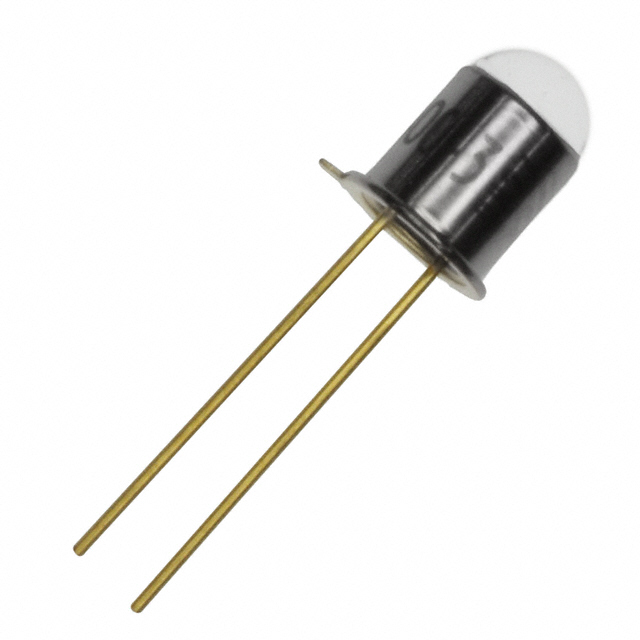

SFH 400
EMITTER IR 950NM 300MA TO-18Manufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
The ams-OSRAM USA INC. SFH-400 is an infrared (IR) emitter designed for applications requiring focused, high-intensity IR illumination. This TO-18-2 Metal Can packaged component operates with a typical forward voltage of 1.3V and a maximum DC forward current of 300mA. It emits at a wavelength of 950nm, delivering a radiant intensity of 36mW/sr at 100mA. The narrow 12° viewing angle ensures efficient light delivery for targeted sensing and communication tasks. With a robust operating temperature range of -40°C to 125°C (TA), the SFH-400 is suitable for use in industrial automation, security systems, and optical sensing applications. This through-hole mounted emitter is supplied in bulk packaging.
Additional Information
Series: -RoHS Status: ROHS3 CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: BulkDownload Free CAD Model:
Technical Details:
| Packaging | Bulk |
| Package / Case | TO-18-2 Metal Can |
| Wavelength | 950nm |
| Mounting Type | Through Hole |
| Type | Infrared (IR) |
| Orientation | Top View |
| Operating Temperature | -40°C ~ 125°C (TA) |
| Voltage - Forward (Vf) (Typ) | 1.3V |
| Viewing Angle | 12° |
| Current - DC Forward (If) (Max) | 300mA |
| Radiant Intensity (Ie) Min @ If | 36mW/sr @ 100mA |
