LZC-C0UA00-00U8
EMITTER UV 410NM 1AManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

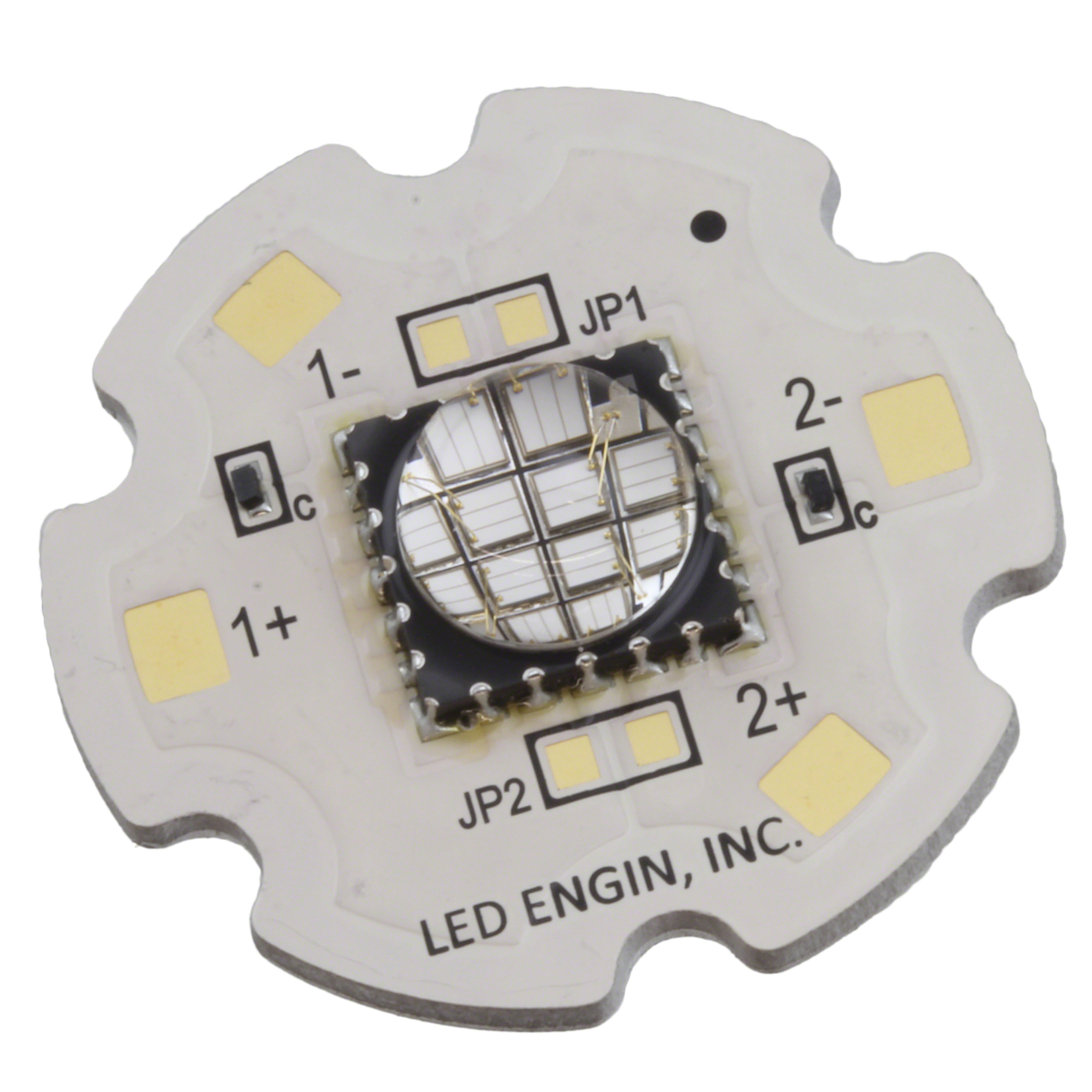

ams-OSRAM USA INC. LZC series ultraviolet (UV) emitter, part number LZC-C0UA00-00U8. This component is a 410nm UV emitter with a forward voltage of 44V and a maximum DC forward current of 1A. It features a 95° viewing angle and is supplied in a Star Array package mounted via screw mount. The LZC-C0UA00-00U8 is designed for high-power applications, handling a junction temperature up to 125°C. This UV emitter finds application in areas such as curing, sterilization, and fluorescence excitation. It is packaged in a tray for efficient handling and integration into manufacturing processes.
Additional Information
Series: LZCRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Star Array |
| Wavelength | 410nm |
| Mounting Type | Screw Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | 125°C (TJ) |
| Voltage - Forward (Vf) (Typ) | 44V |
| Viewing Angle | 95° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | - |
