LZC-70UA00-00U8
EMITTER VIOLET 405NM CLEAR DOMEManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

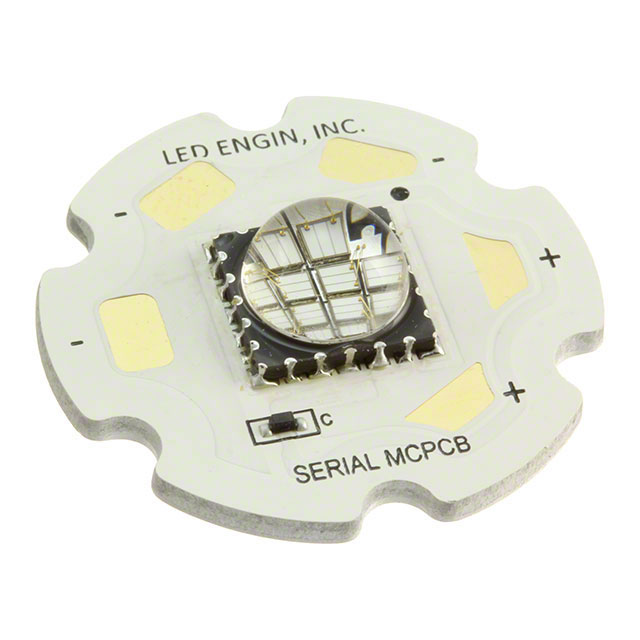

ams-OSRAM USA INC. LZC series ultraviolet (UV) emitter, part number LZC-70UA00-00U8. This 405nm violet LED features a clear dome, providing a 95° viewing angle. Designed for surface mount applications on a Star Array package, it operates with a typical forward voltage of 44V and a maximum DC forward current of 1A. The component is rated for an operating temperature of 125°C (TJ). This emitter is suitable for applications requiring precise UV illumination, including curing, sterilization, and advanced material processing. Packaged in a tray for efficient handling and integration into high-volume manufacturing processes.
Additional Information
Series: LZCRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Star Array |
| Wavelength | 405nm |
| Mounting Type | Surface Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | 125°C (TJ) |
| Voltage - Forward (Vf) (Typ) | 44V |
| Viewing Angle | 95° |
| Current - DC Forward (If) (Max) | 1A |
| Radiant Intensity (Ie) Min @ If | - |
