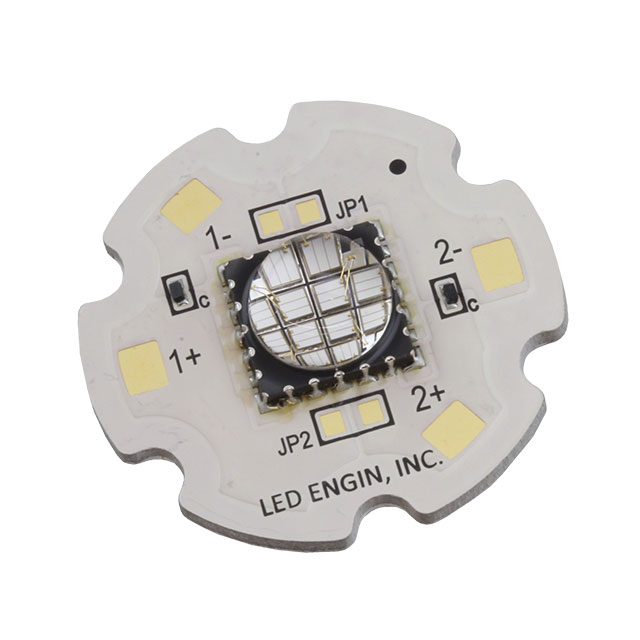

LZC-70U600-00U0
EMITTER UV 365NM 700MA STARManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More
ams-OSRAM USA INC. LZC series UV emitter, part number LZC-70U600-00U0, delivers powerful 365nm ultraviolet output. This Star Array package component operates at a typical forward voltage of 49V and supports a maximum DC forward current of 700mA. Designed for demanding applications, it features a broad 95° viewing angle and a high junction operating temperature rating of 100°C (TJ). The LZC-70U600-00U0 is suitable for industrial curing, sterilization, and analytical instrumentation. Packaging is provided in trays.
Additional Information
Series: LZCRoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Star Array |
| Wavelength | 365nm |
| Mounting Type | Screw Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | 100°C (TJ) |
| Voltage - Forward (Vf) (Typ) | 49V |
| Viewing Angle | 95° |
| Current - DC Forward (If) (Max) | 700mA |
| Radiant Intensity (Ie) Min @ If | - |
