LZ4-40U600-0000
EMITTER UV 365NM 700MA STARManufacturer: ams-OSRAM USA INC.
Categories: LED Emitters - Infrared, UV, Visible
Quality Control: Learn More

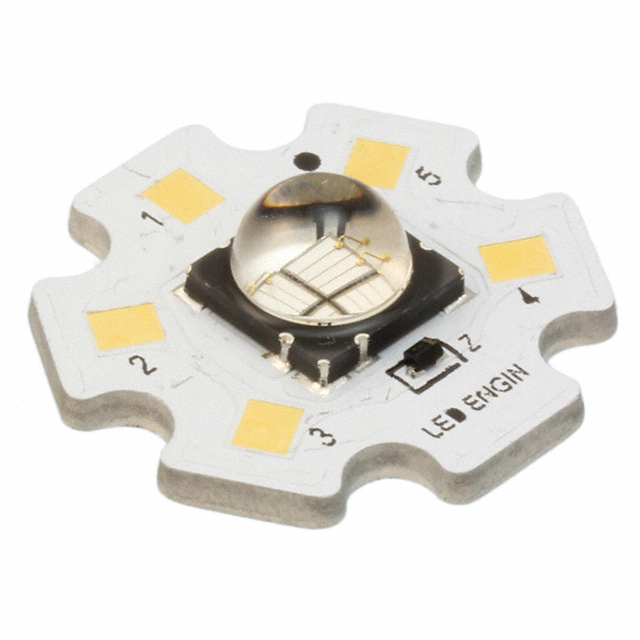

The ams-OSRAM USA INC. LZ4-40U600-0000 is a high-performance ultraviolet (UV) emitter from the LZ4 series. This component features a 365nm wavelength, delivering precise UV light output. Operating at a typical forward voltage of 16.4V and a maximum forward current of 700mA, it is designed for demanding applications. The Star Array package, suitable for screw mounting, ensures efficient thermal management with an operating junction temperature of 100°C. This UV emitter is widely adopted in sterilization, curing, and analytical instrumentation industries. Its 115° viewing angle provides broad coverage for various UV-based processes.
Additional Information
Series: LZ4RoHS Status: RoHS CompliantManufacturer Lead Time: No lead time information availableProduct Status: ObsoletePackaging: TrayDatasheet:Download Free CAD Model:
Technical Details:
| Packaging | Tray |
| Package / Case | Star Array |
| Wavelength | 365nm |
| Mounting Type | Screw Mount |
| Type | Ultraviolet (UV) |
| Orientation | Top View |
| Operating Temperature | 100°C (TJ) |
| Voltage - Forward (Vf) (Typ) | 16.4V |
| Viewing Angle | 115° |
| Current - DC Forward (If) (Max) | 700mA |
| Radiant Intensity (Ie) Min @ If | - |
